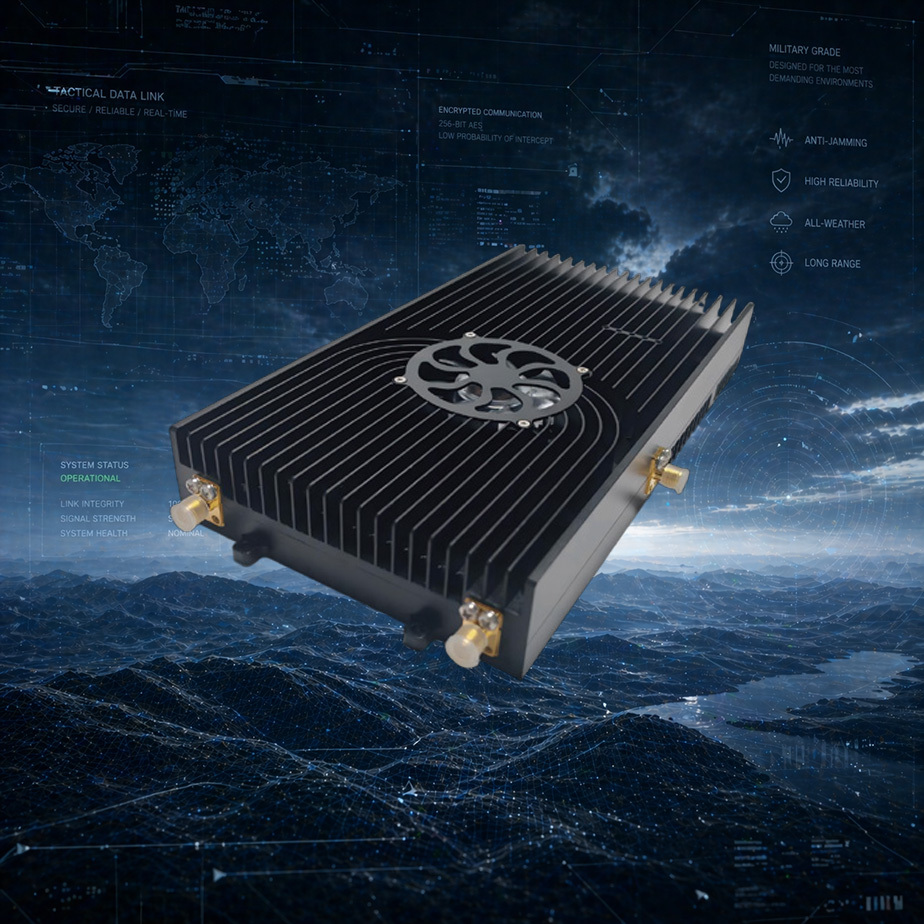

150km-class Mesh Dual-Band Datalink S9150D

Feature

Description

Adaptive Frequency Hopping (Anti-Jamming)

Real-time dynamic frequency switching to avoid interference and maintain stable communication in complex RF environments

Dual-Band Concurrent Communication

Two independent RF links operate simultaneously, separating control/telemetry and video/payload data

Dual-Band Redundancy

Ensures link continuity when one frequency band is degraded or jammed

Long-Range Transmission (150 km)

Supports long-distance UAV operations with reliable LOS communication

High Data Throughput

Up to 40 Mbps (optional 80 Mbps) for HD video and mission data transmission

SDR-Based Flexibility

Software-defined architecture allows customizable frequency combinations and mission adaptation

Secure Communication (AES-256)

End-to-end encryption for control, telemetry, and payload data protection

High Power RF Output

Adjustable 0–40 dBm output power for different deployment scenarios

Category

Specification

Model

S9150D

Frequency Bands

800 MHz / 900 MHz +1.7 GHz / 2.4 GHz (customizable)

Dual-Band Mode

Concurrent operation

Frequency Hopping

Adaptive (anti-jamming)

Transmission Distance

Up to 150 km (LOS, MESH)

Throughput

Up to 40 Mbps (80 Mbps optional)

Modulation

COFDM / QPSK / 16QAM / 64QAM

Transmission Power

0–40 dBm

Latency

< 30 ms

Encryption

AES-256

Interfaces

RJ45 ×2, RS232 ×1, TTL ×1, SBUS ×1 (configurable)

Dimensions

217 × 108 × 29.7 mm

Weight

~640 g

Operating Temperature

-40°C to +65°C

Dimension

S905M

S910M

S920M

S930M

S9150D

Size / Weight

★★★★★ (Smallest)

★★★★☆

★★★☆☆

★★☆☆☆

★☆☆☆☆ (Largest)

Transmission Range

★★☆☆☆

★★★☆☆

★★★★☆

★★★★★

★★★★★+

Throughput

★★☆☆☆

★★★☆☆

★★★★☆

★★★★★

★★★★★+

Anti-Jamming Capability

★★★☆☆

★★★★☆

★★★★☆

★★★★★

★★★★★+

Networking Capability

★★☆☆☆

★★★★☆

★★★★★

★★★★★+

★★★★★+

Typical Platform

Micro UAV

Small UAV

Medium UAV

Large UAV / System-level

MALE/HALE UAV, Ground Stations, Complex Systems
