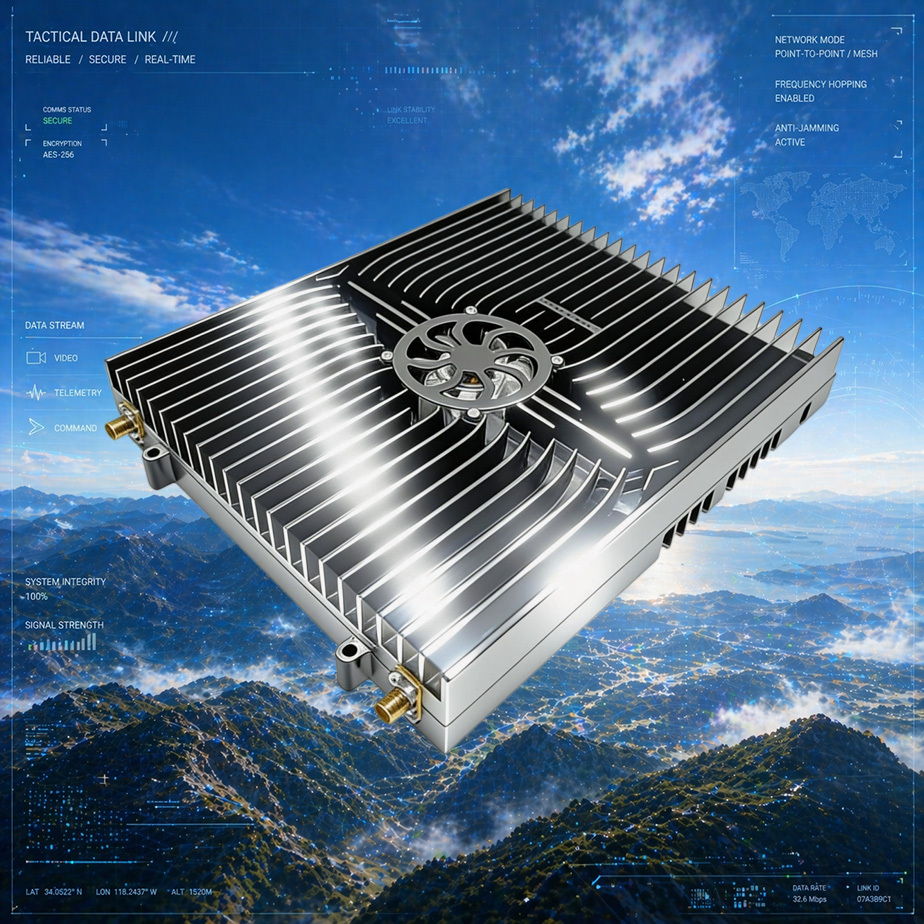

300km-class Tactical Datalink S930

Feature

Description

300 km Long-Range Link

Stable air-to-ground communication over extended LOS distances

Intelligent Frequency Hopping

Automatic spectrum sensing and dynamic frequency selection

Strong Anti-Jamming Capability

Maintains link stability under high interference conditions

Secure Transmission

AES256 encryption for protected data links

Low Latency

< 30 ms delay for real-time control and video

High Integration

Compact, lightweight design for UAV deployment

Flexible Networking

Supports relay UAV and extended coverage architecture

Multi-Interface Support

Ethernet, serial, SBUS for seamless system integration

Parameter

Specification

Model

S930

Transmission Range

Up to 300 km (LOS)

Frequency Band

1.4 GHz (customizable 0.7–2.7 GHz)

Transmission Power

0 – 46 dBm

Max Throughput

20 Mbps

Channel Bandwidth

1.25 / 2.5 / 5 / 10 MHz

Latency

< 30 ms

Encryption

AES256

Interfaces

RJ45 ×2, RS232 ×2, TTL/SBUS ×1 (configurable)

Operating Temperature

−40°C to +65°C

Weight

~1100 g

Dimensions

223.8 × 170.2 × 31 mm

Category

S905

S910

S920

S930

S950

Size / Weight

★★★★★ (Ultra-compact)

★★★★☆

★★★☆☆

★★☆☆☆

★☆☆☆☆

Range Capability

★★☆☆☆

★★★☆☆

★★★★☆

★★★★★

★★★★★+

Throughput

★★☆☆☆

★★★☆☆

★★★★☆

★★★★☆

★★★★★

Anti-Interference

★★★☆☆

★★★★☆

★★★★☆

★★★★★

★★★★★+

Link Robustness

★★☆☆☆

★★★☆☆

★★★★☆

★★★★★

★★★★★+

Typical Platform

Micro UAV / UGV

Small UAV

Medium UAV

Large UAV

Heavy-duty UAV
