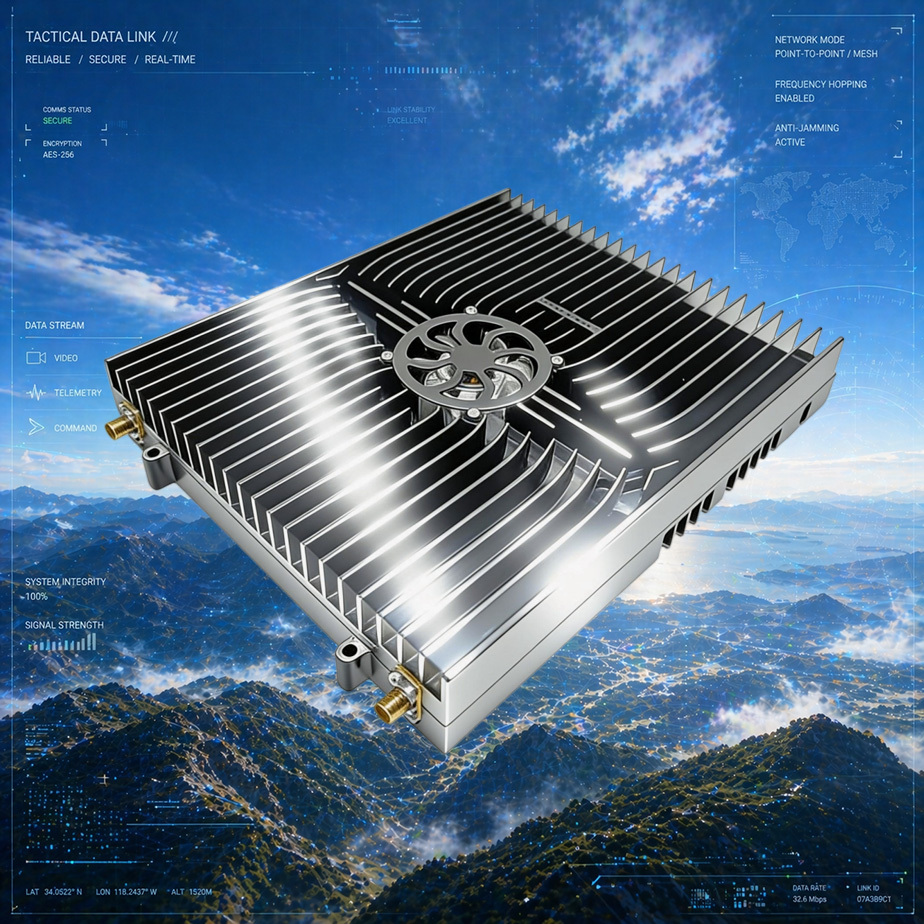

500km-class Telemetry Datalink S950

Reliable Command & Data Link for Beyond-Line-of-Sight UAV Missions, designed for missions where control reliability matters more than video transmission.

No video. Maximum reliability. Up to 500 km.

Unlike broadband video links, the S950 focuses on ultra-reliable communication, offering:

  • Strong anti-interference performance
  • Adaptive frequency selection
  • Low latency and stable connectivity over extreme distances

It is ideal for long-endurance UAV missions where continuous control and data feedback are critical, but real-time video is not required.

  • 500km-class Telemetry Datalink S950
  • 500km-class Telemetry Datalink S950

Description

Key Features

Feature

Description

500 km Long-Range Link

Stable air-to-ground communication over extended distances (LOS)

Pure Telemetry Transmission

Designed for command, control, and sensor data (no video)

Adaptive Frequency Management

Intelligent spectrum sensing and automatic frequency selection

Strong Anti-Jamming

Maintains link stability in interference-prone environments

Low Latency (<30 ms)

Real-time control with minimal delay

Secure Communication

AES256 encryption for air interface

Flexible Modulation

Supports COFDM, QPSK, 16QAM, 64QAM

SDR Architecture

Software-defined radio for flexible deployment

Lightweight Integration

Compact design for UAV platforms


Technical Specifications

Parameter

Specification

Model

S950

Transmission Range

Up to 500 km (LOS)

Data Type

Telemetry & Command (No Video)

Max Throughput

Up to 20 Mbps

Frequency Band

1.4 GHz (customizable 0.7–2.7 GHz)

Output Power

0–46 dBm

Channel Bandwidth

1.25 / 2.5 / 5 MHz

Latency

< 30 ms

Interfaces

RJ45 ×2, RS232 ×1, TTL ×1, SBUS ×1

Operating Temp.

−40°C to +65°C

Weight

~1100 g

Dimensions

223.8 × 170.2 × 31 mm



Typical Applications


  • Long-Range UAV Reconnaissance (No Video Missions)
  • Border & Coastal Patrol (Wide-area coverage)
  • Pipeline / Powerline Monitoring
  • Disaster & Environmental Data Collection
  • Maritime Surveillance & Offshore Operations


Key Differences (At-a-Glance)

Category

S905

S910

S920

S930

S950

Size / Weight

★★★★★ (Ultra-compact)

★★★★☆

★★★☆☆

★★☆☆☆

★☆☆☆☆

Range Capability

★★☆☆☆

★★★☆☆

★★★★☆

★★★★★

★★★★★+

Throughput

★★☆☆☆

★★★☆☆

★★★★☆

★★★★☆

★★★★★

Anti-Interference

★★★☆☆

★★★★☆

★★★★☆

★★★★★

★★★★★+

Link Robustness

★★☆☆☆

★★★☆☆

★★★★☆

★★★★★

★★★★★+

Typical Platform

Micro UAV / UGV

Small UAV

Medium UAV

Large UAV

Heavy-duty UAV
