Long-Range Day/Night Surveillance, Tracking & Targeting up to 20 km, is a high-end electro-optical surveillance system designed for long-range detection, tracking, and identification in complex environments.
The Eagle 102Y integrates cooled thermal imaging, ultra-long-range visible optics, laser illumination, and laser ranging into a single stabilized platform. It enables continuous monitoring of human, vehicle, and aerial targets across day and night conditions, even in complete darkness or harsh weather.

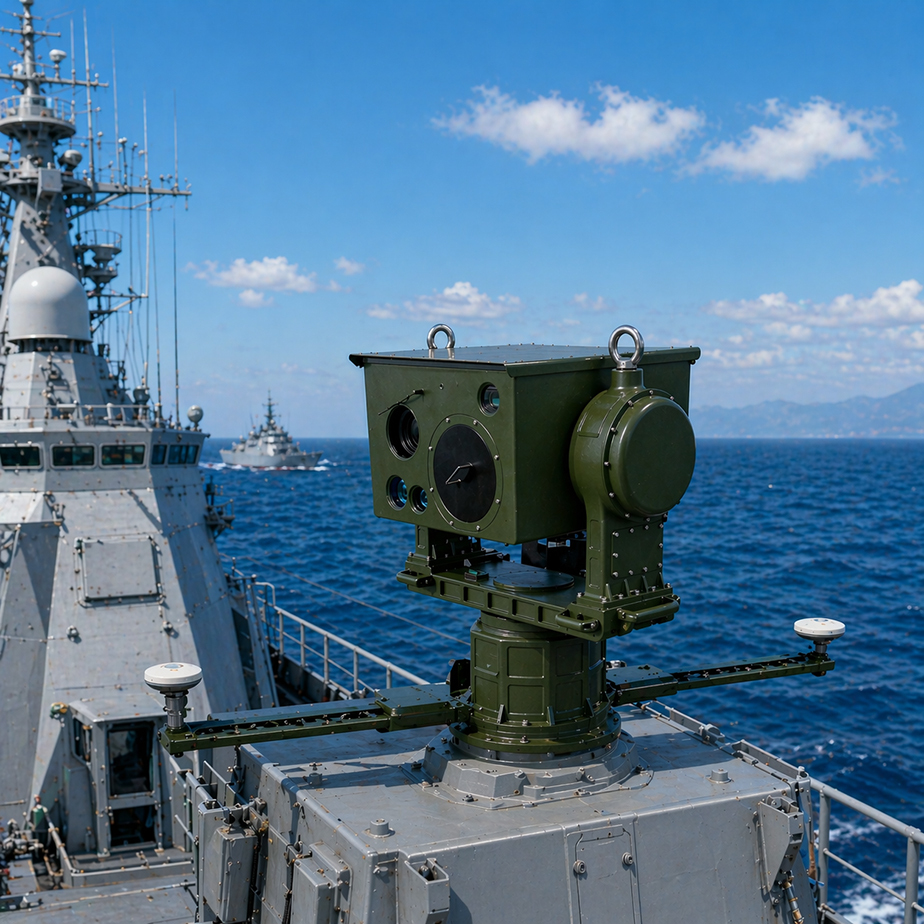

Optimized for naval, border, and fixed-site deployment, the system delivers high-precision tracking, superior imaging clarity, and reliable operation in mission-critical scenarios.
Key Features
|
Product |
Features |
|
Multi-Sensor Fusion |
Thermal + Visible + Laser integration for uninterrupted surveillance. |
|

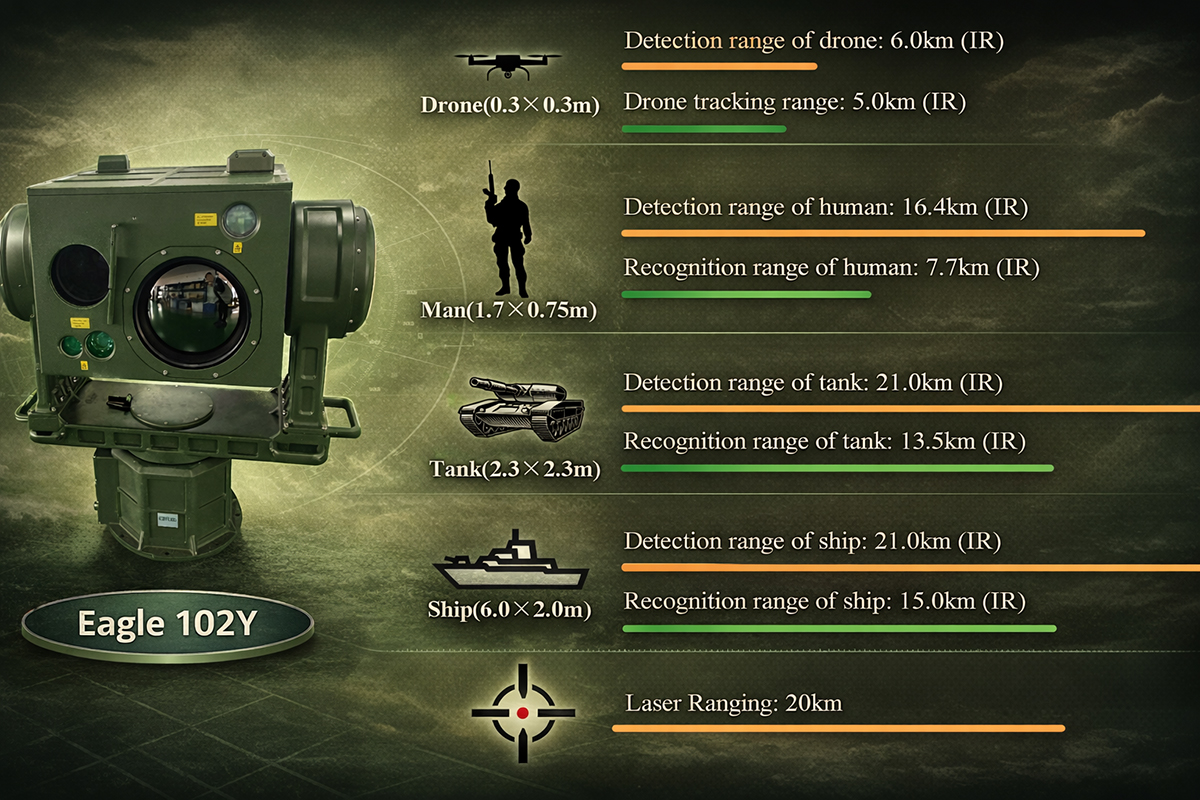

Ultra Long-Range Detection |
Detect and recognize targets beyond 20 km in real-world conditions. |
|
Intelligent Auto Tracking |
Real-time tracking with low latency and high stability. |
|
Precision Laser Ranging |
Accurate distance measurement for targeting and situational awareness. |
|
Gyro Stabilization |
Stable imaging on moving platforms such as vessels. |
Technical Specifications
|
Parameter |
Specification |
|
Model |
Eagle 102Y |
|
Power Supply |
AC90–305V input (converted to DC30V / DC48V) |
|
Power Consumption |
≤460W (rated), ≤600W (peak) |
|
Operating Temperature |
-25°C to +65°C |
|
Protection Level |
IP66, lightning & surge protection |
|
Interface |
RJ45, RS422 |
|
Mounting |
Vessel-mounted |
|
Parameter |
Specification |
|
Thermal camera |
|
|
Visible Camera |
|
|
Auto tracking distance |
|
|
Parameter |
Specification |
|
Sensor |
Cooled FPA detector |
|
Resolution |
640 × 512 |
|
Spectral Range |
3.7–4.8 μm |
|
NETD |
≤25 mK |
|
Lens |
34–750 mm (22× zoom) |
|
FOV |
0.7° × 0.6° to 16.1° × 12.9° |
|
Parameter |
Specification |
|
Sensor |
1/1.8" CMOS |
|
Focal Length |
16.7–1000 mm |
|
Video Resolution |
Up to 4 MP |
|
Encoding |
H.265 / H.264 / MJPEG |
|
Frame Rate |
Up to 30 fps |
|
Features |
Auto focus, defog, image stabilization |
|
Parameter |
Specification |
|
Laser Rangefinder Distance |
≥20 km |
|
Accuracy |
<3 m |
|
Laser Illuminator Power |
20W |
|
Wavelength |
810 nm |
|
Night Vision Distance |
~4 km |
|
Parameter |
Specification |
|
Pan Range |
360° continuous |
|
Tilt Range |
-45° to +90° |
|
Speed |
0.01°/s to 100°/s |
|
Presets |
2048 |
|
Accuracy |
±0.05° |

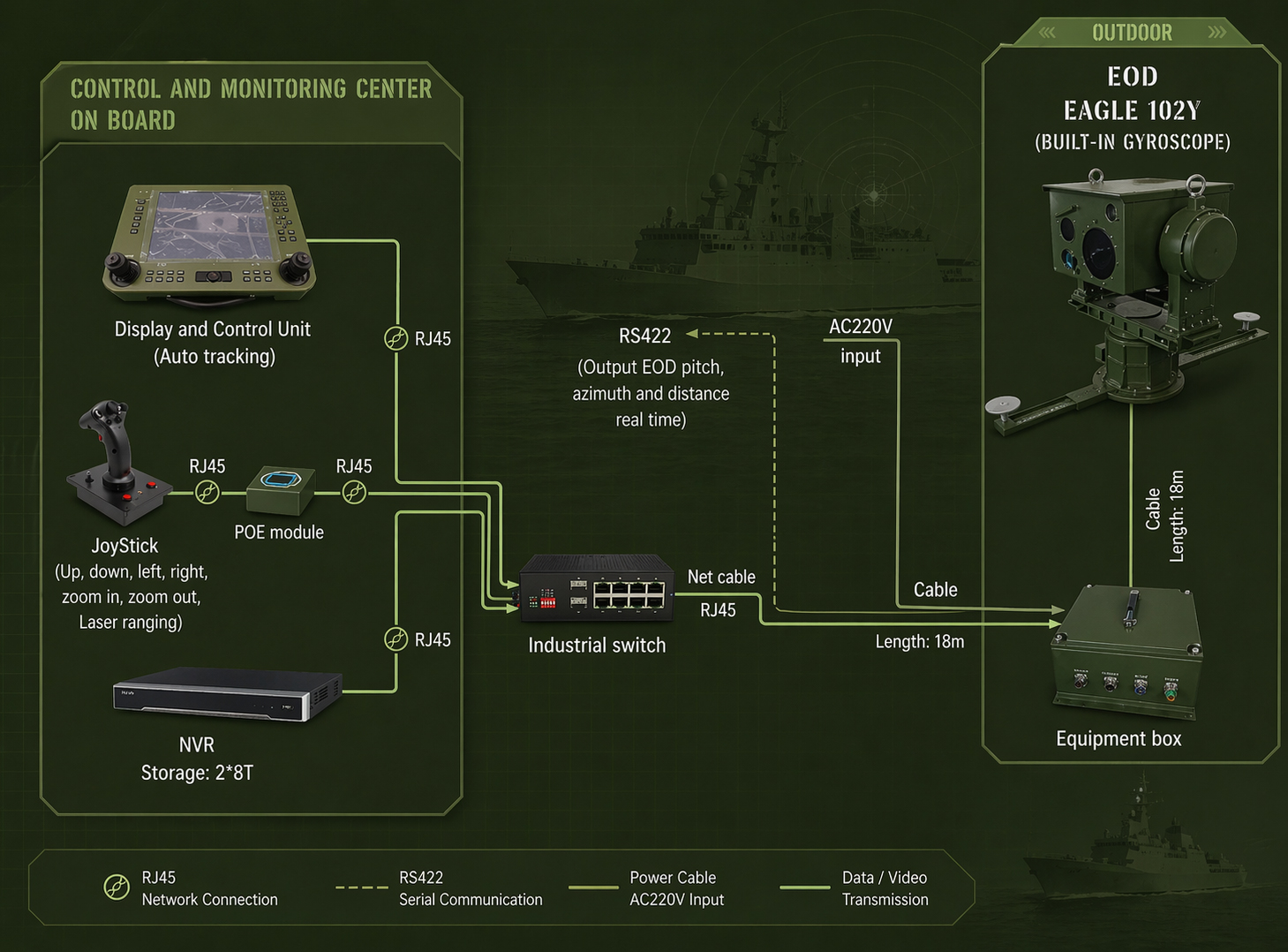

System Connection Diagram
Typical Applications
