Eagle T5 is a vehicle-grade multi-sensor payload designed for integration with rotating platforms, providing long-range detection, visual identification, and laser ranging for targeting and surveillance applications, it integrates thermal imaging, high-zoom optics, and laser ranging to deliver detection, identification, and precise targeting data.
Key Features
Turn any rotating platform into a targeting-capable sensing system:
Technical Specifications
|
Parameter |
Specification |
|
Input Voltage |
DC 24V |
|
Power Consumption |
≤120 W |
|
Interface |
RJ45 (10/100 Base-T) |
|
Protocol |
RS422 / Pelco-D |
|
Compression |
H.265 / H.264 / MJPEG |
|
Operating Temperature |
-25°C to +65°C |
|
Storage Temperature |
-40°C to +65°C |
|
GPS |
Supported |
|
Material |
High-strength aluminum alloy |
|
Protection |
Sealed, rugged design |
|
Weight |
≤15 kg |
|

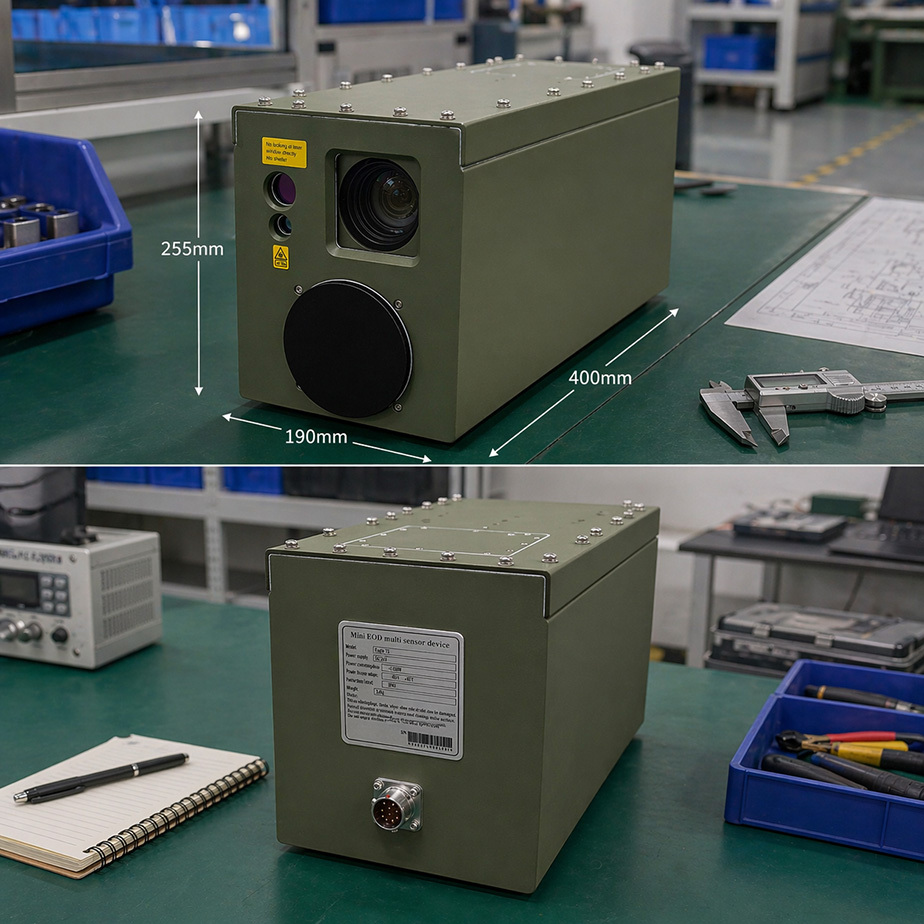

Size |
D400 * W190 * H255mm （Custom sizes available） |
|
Mounting |
Vehicle / platform-mounted |
|
Parameter |
Capability |
|

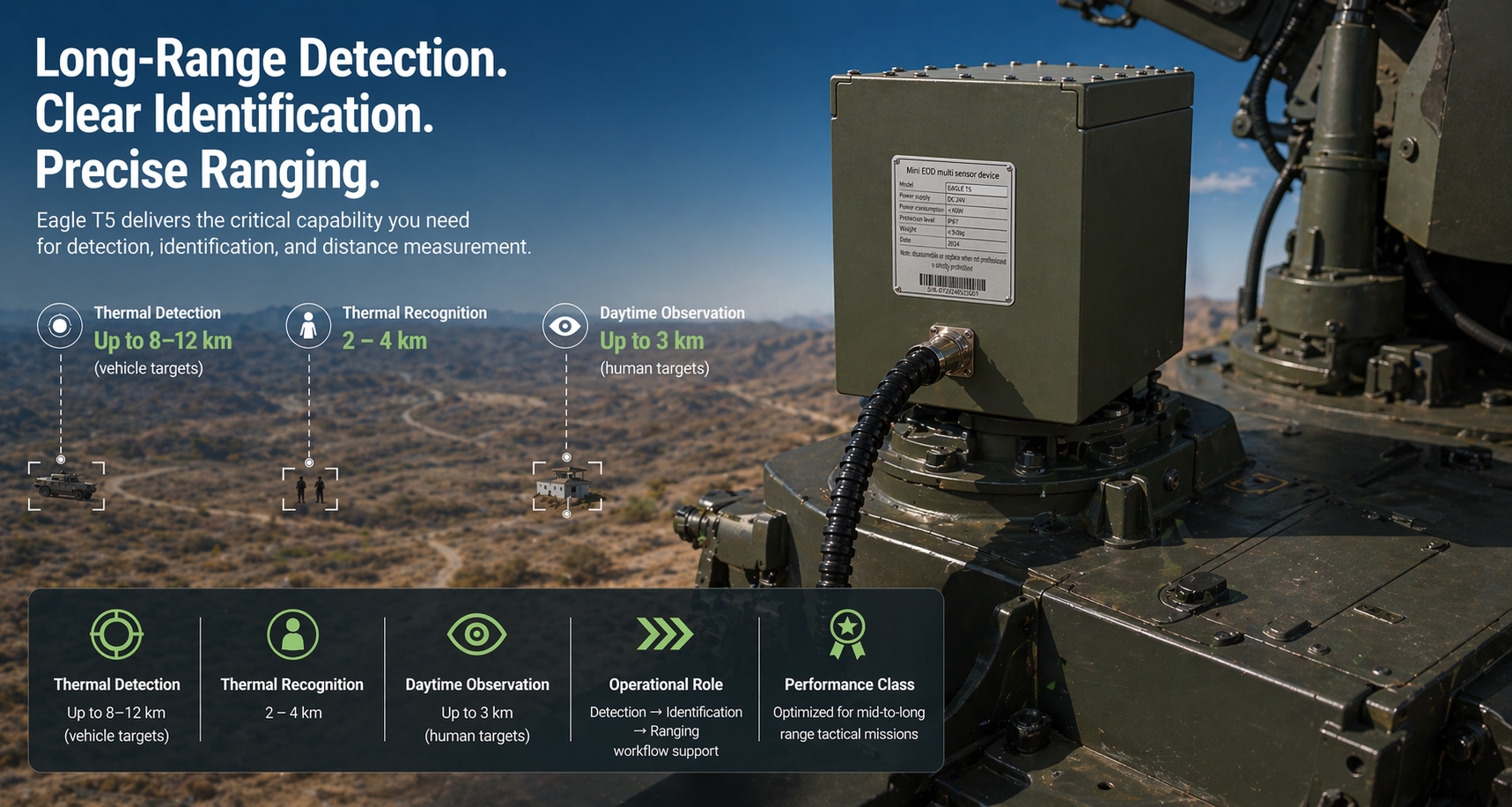

Thermal Detection |
Up to 8–12 km (vehicle targets) |
|
Thermal Recognition |
2 – 4 km |
|
Daytime Observation |
Up to 3 km (human targets) |
|
Operational Role |
Detection → Identification → Ranging workflow support |
|
Performance Class |
Optimized for mid-to-long range tactical missions |
|
Feature |
Specification |
|
Detector Type |
Uncooled FPA |
|
Resolution |
640 × 512 |
|
Focal Length |
25–100 mm (continuous zoom) |
|
Field of View |
6.2° × 5.0° to 24.6° × 19.8° |
|
Digital Zoom |
1× – 4× |
|
Image Processing |
DDE, pseudo-color modes |
|
Correction |
Manual / FFC non-uniformity correction |
|
Advantage |
Reliable detection independent of light conditions |
|
Feature |
Specification |
|
Sensor Type |
1/1.8" Progressive Scan CMOS |
|
Resolution |
1920 × 1080 (Full HD) |
|
Optical Zoom |
58× |
|
Focal Length |
6.3 mm – 365 mm |
|
Image Functions |
Auto gain, auto white balance, day/night switching |
|
Enhancement |
3D noise reduction, image stabilization, defog |
|
Output |
H.265 / H.264 / MJPEG |
|
Advantage |
High-detail target identification at long range |
|
Feature |
Specification |
|
Range Capability |
50 m – 5 km |
|
Accuracy |
±1 m |
|
Measurement Output |
Real-time distance display |
|
Integration Role |
Supports targeting and fire-control workflows |
|
Advantage |
Enables precise distance-based decision-making |
