Product Overview

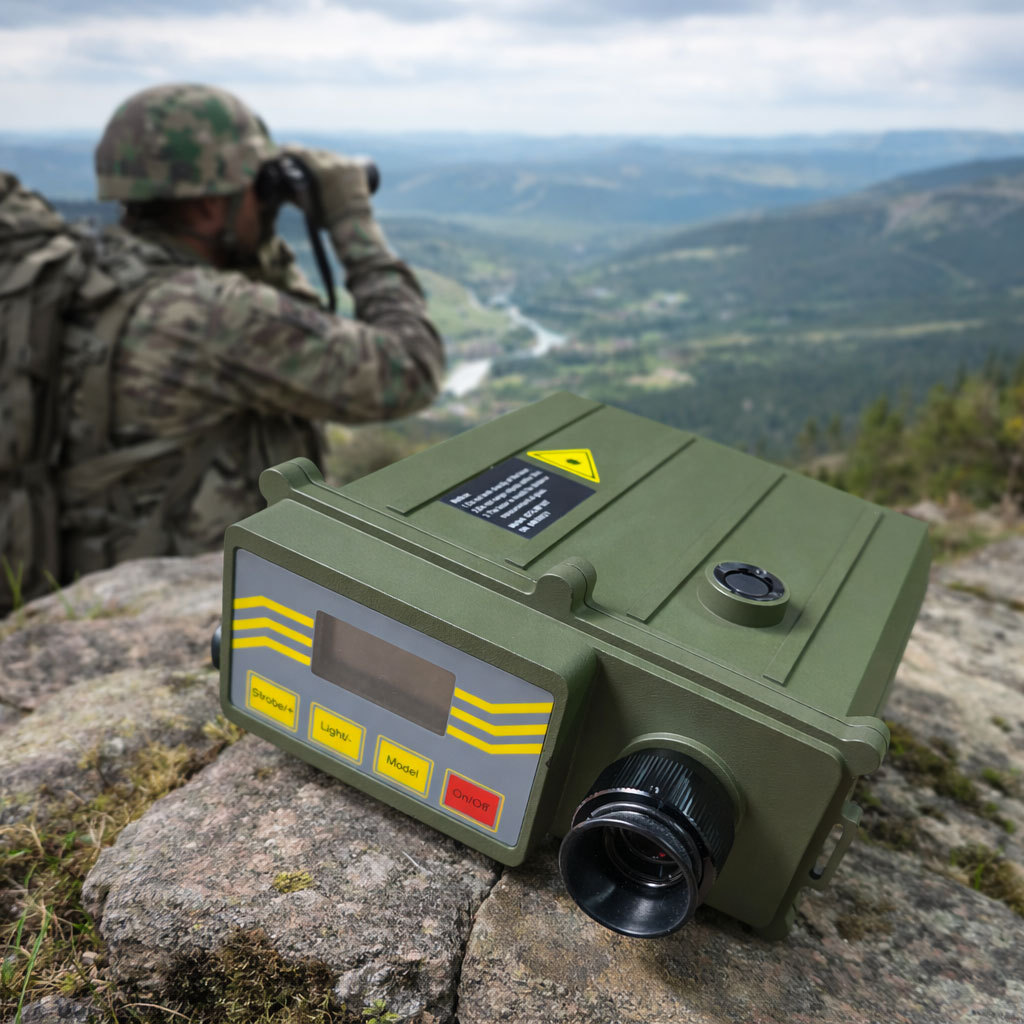

GT-LRF10T is a man-portable 10 km laser rangefinder designed for long-range target measurement, azimuth guidance, and vehicle-mounted fire-control training.
More than a conventional laser rangefinder, it provides operators with real-time target data output, including distance, azimuth, pitch angle, horizontal distance, and elevation difference, enabling direct integration with vehicle computers, portable laptops, and external weapon training systems.
Key Features
|
No. |
Product |
Features |
|
1 |
10 km Precision Target Measurement |
Measure targets from 30 m to 10,000 m with ±1 m accuracy, while simultaneously outputting distance, azimuth, pitch, horizontal distance, and elevation difference. |
|
2 |
Real-Time Fire-Control Data Output |

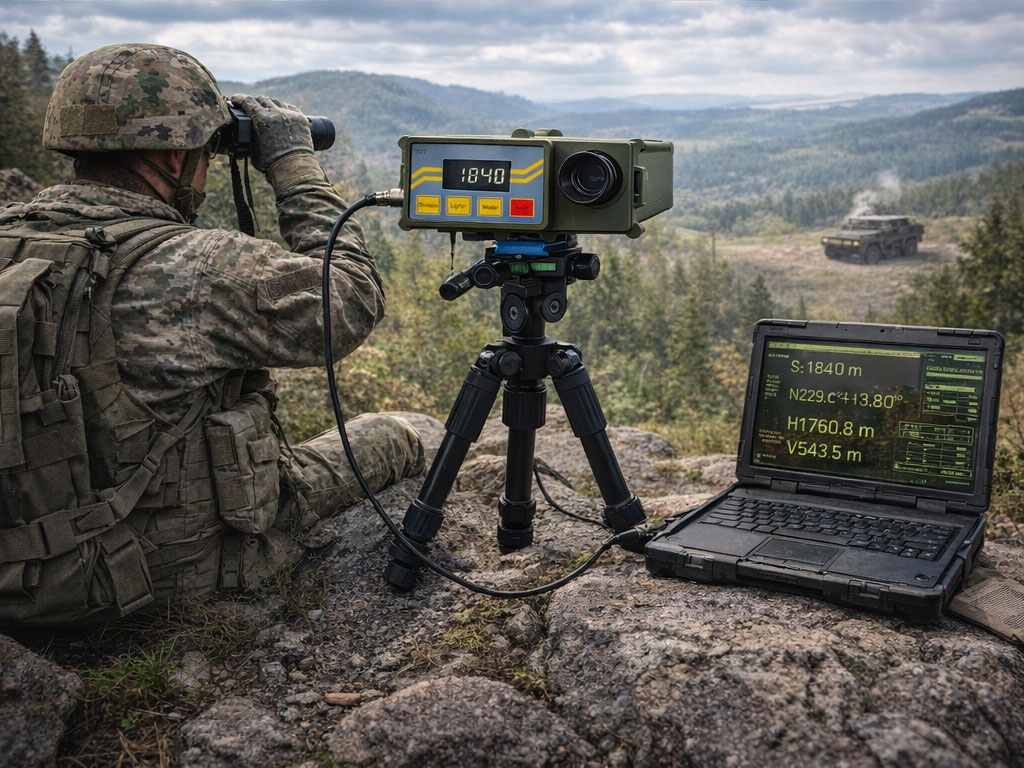

Built-in RS232 real-time output enables seamless connection to vehicle computers, portable laptops, and weapon training systems, supporting target calculation and fire-control simulation. |
|
3 |
Flexible Handheld or Tripod Deployment |

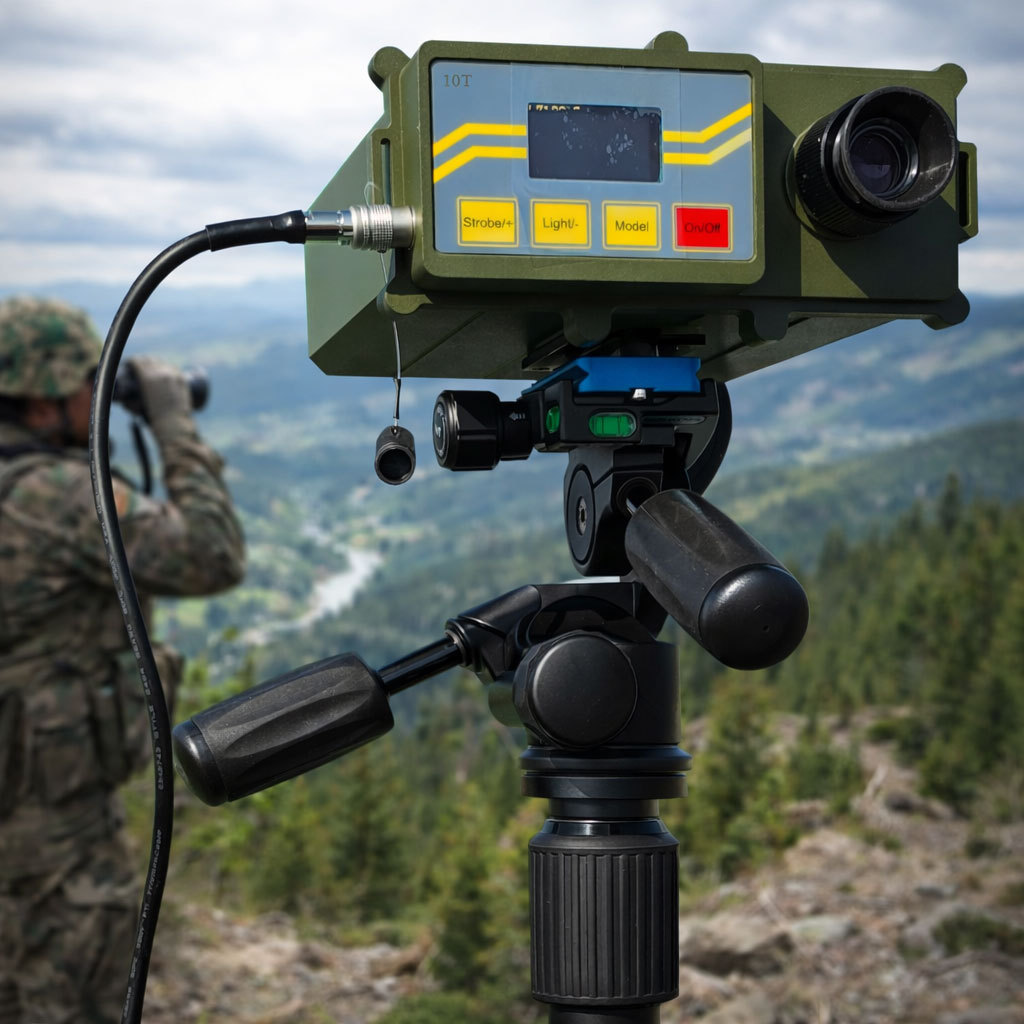

Use it as a single-soldier handheld rangefinder or mount it on a tripod for stable long-range observation, vehicle-based drills, and repeated target measurement tasks. |
|
4 |
Replaceable Battery for Continuous Missions |
The rechargeable field-replaceable battery pack supports fast battery swap, making it ideal for long-duration training, observation posts, and multi-shift field operations. |
Technical Specifications
|
No. |
Parameter |
Specification |
|
1 |
Max Range |
10,000 m |
|
2 |
Measuring Range |
30–10,000 m |
|
3 |
Accuracy |
±1 m |
|
4 |
Magnification |
10× |
|
5 |
Field of View |
5° |
|
6 |
Receiving Diameter |
Φ42 mm |
|
7 |
Data Output |
RS232 real-time |
|
8 |
Weight |
≤1.35 kg |
|
9 |
Protection |
IP65 |
|
10 |
Battery |
Rechargeable & replaceable Li-polymer |
