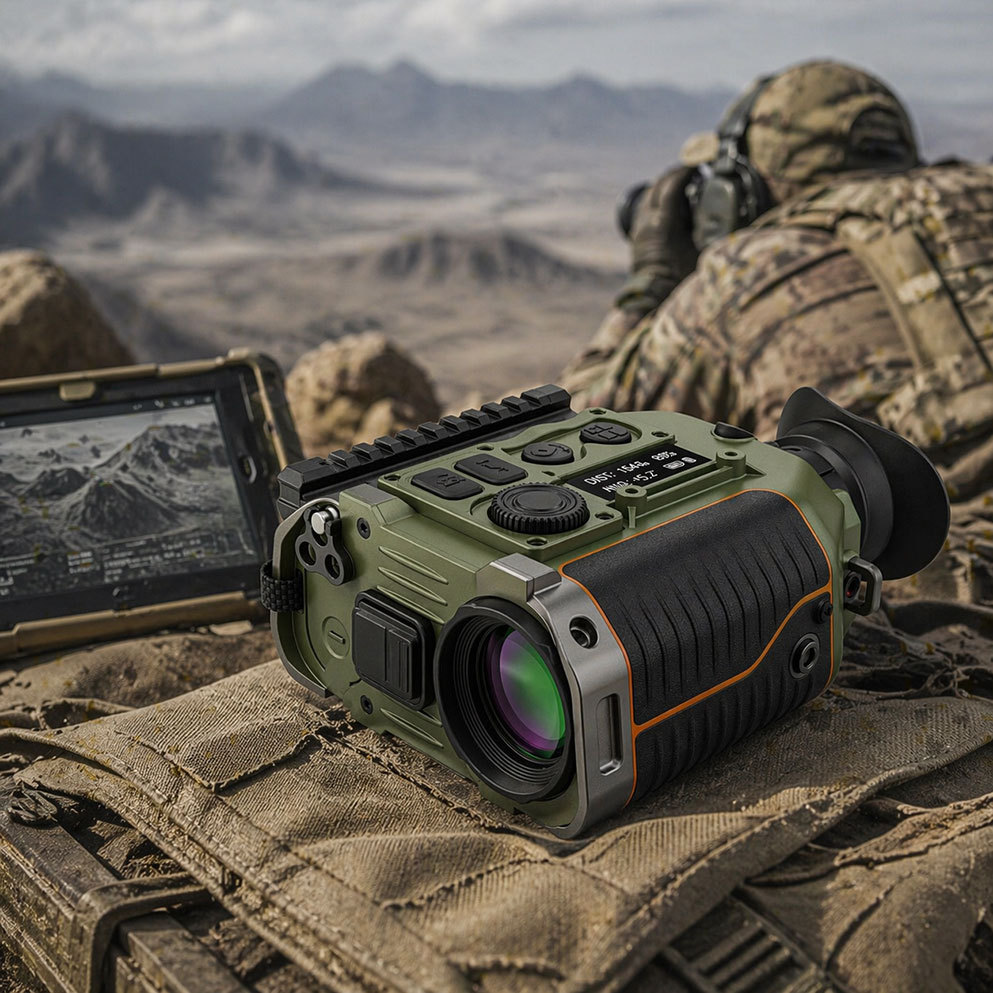

LRP8 Intelligent 10km Laser Rangefinder & Targeting System

No.

Product

Core Value

1

Measure

Up to 10 km long-range laser ranging.

• Max range up to 10 km (large targets)
• ±1 m accuracy
• 1–10 Hz measurement frequency

2

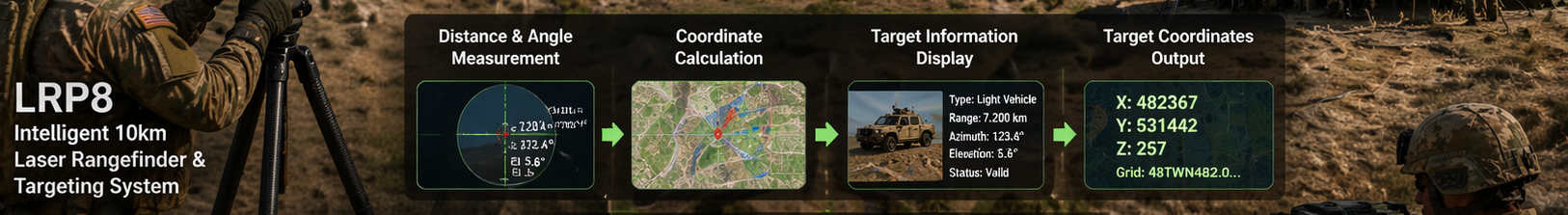

Locate

Real-time target coordinate calculation, built-in GNSS + electronic compass.

• Supports: WGS84 / SK42 and UTM / MGRS / GAUSS
• Outputs: Target coordinates and Azimuth & elevation

3

Ballistic Calculation

LRP8 combines long-range ranging, target positioning, multi-target analysis, and real-time ballistic computation into a fully integrated targeting system.

Supports configuration of different weapon types and ballistic parameters, including sight height, sight offset, muzzle velocity, zeroing distance, zeroing temperature, zeroing pressure, crosswind speed, and longitudinal wind speed.

4

Analyze

Multi-target spatial relationship computation, measure up to 3 targets simultaneously, Calculate:

• Distance difference
• Height difference
• Angle deviation

5

Integrate

Full RS232 data output for external systems, designed for integration into UAV systems, fire control systems and command platforms.

Real-time output:

• Distance
• Coordinates
• Angles
• Environmental data
• Remote control capability

No.

Parameter

Specification

1

Ranging Performance

• Max Range: ≥10 km (large targets)
• Vehicle Target Range: ≥7 km
• Accuracy: ±1 m
• Measurement Rate: 1–10 Hz

2

Angular Measurement

• Azimuth Range 0° – 360°, Azimuth Accuracy ≤ 0.3°
• Elevation Range -90° – +90°, Elevation Accuracy ≤ 0.1°

3

Target Positioning

• Self-Positioning Accuracy: ≤ ±3 m
• Target Positioning Accuracy: ≤ 20 m
• Supported Coordinate Systems: WGS84 / UTM / MGRS / GAUSS

4

Optical System

• Magnification: 8×, optical magnification
• Field of View: 6°
• Aperture: 33 mm
• Low-light CMOS unit (Optional)

5

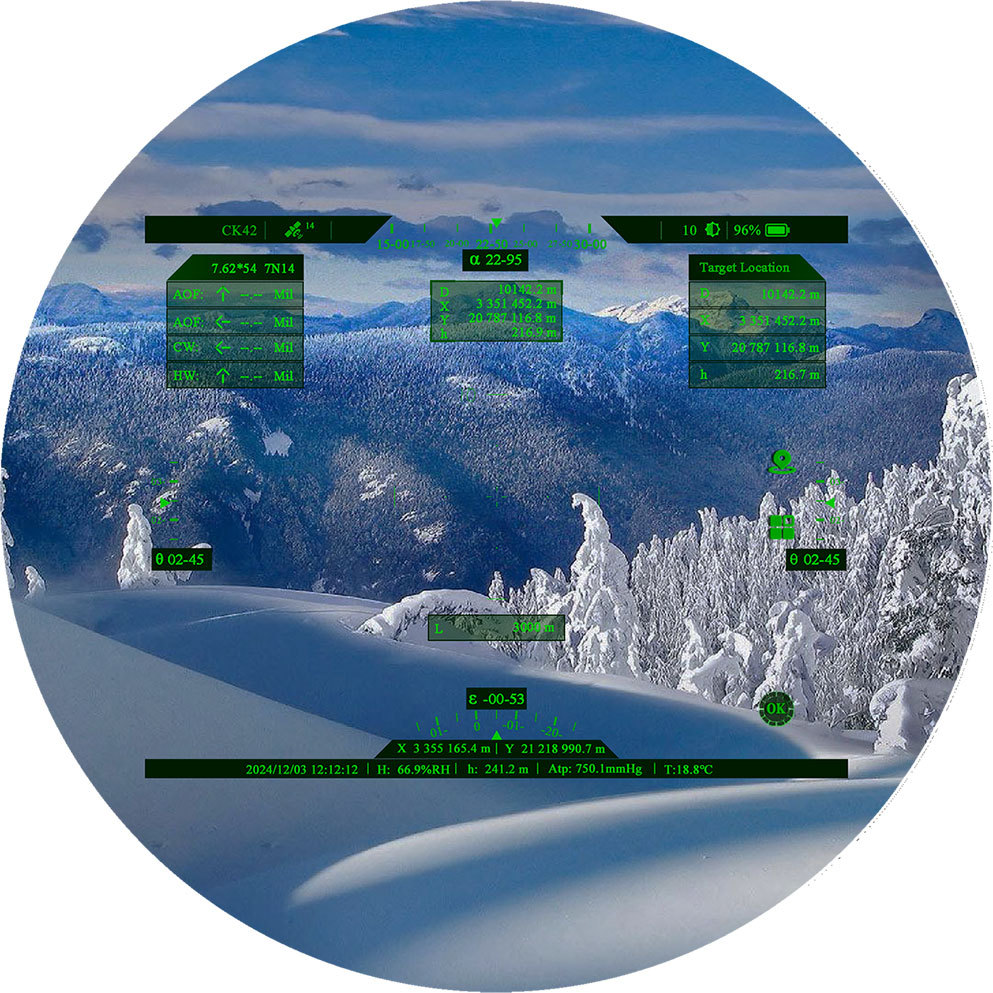

Enhanced Display System

• OLED + Automatic Brightness
• Independent Reticle Brightness Adjustment

6

Ballistic Capability

• l  Supports ballistic parameter configuration
• l  Real-time ballistic calculation output
• l  Supports custom ballistic profiles import

7

Multi-Target Capability

• Supports up to 3 targets
• Relative distance, height, and angle calculation

8

Environmental & Sensors

Integrated: Temperature, Pressure and Humidity

9

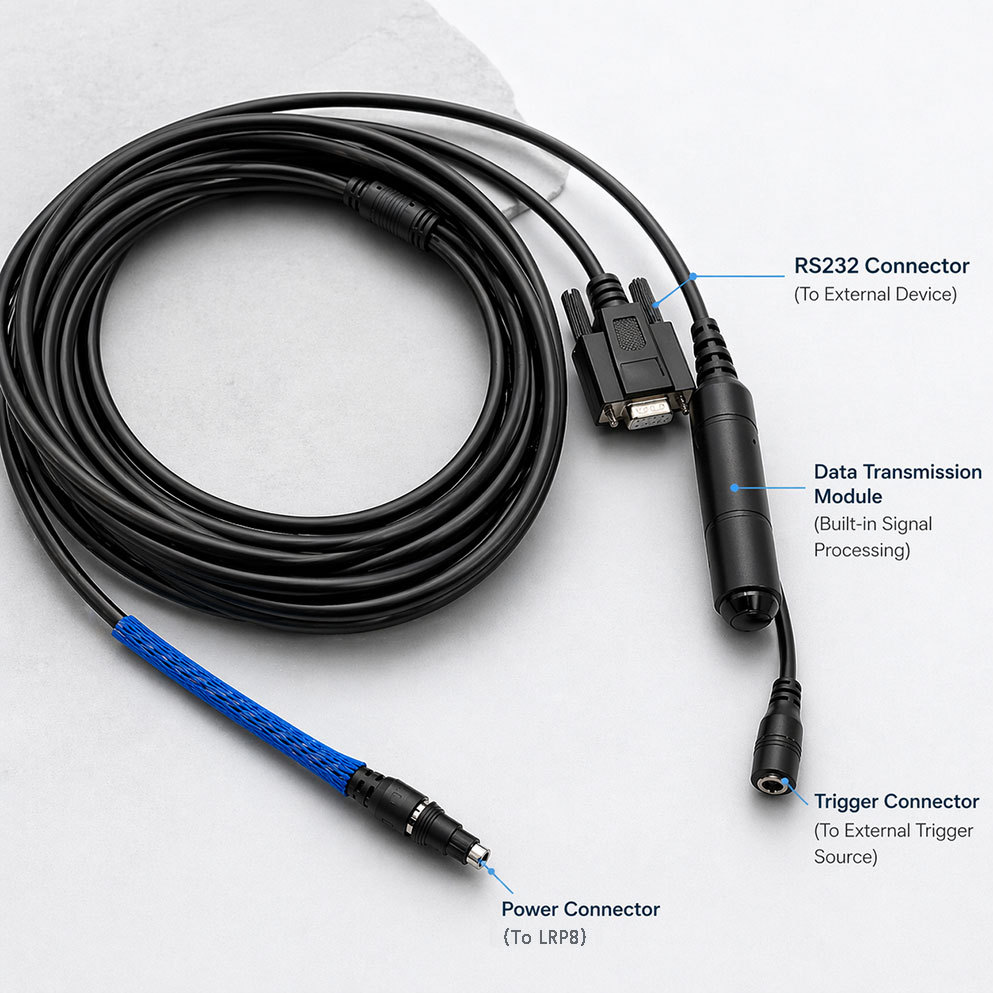

Interface & Integration

• RS232 data interface
• Remote control capability
• External system integration support

10

Power & Endurance

• Operating Time: ≥8 hours
• External Power Support

11

Physical & Environmental

• Weight: 1.0kg (weight including batteries)
• Protection: IP67
• Operating Temperature: -40°C to +60°C
