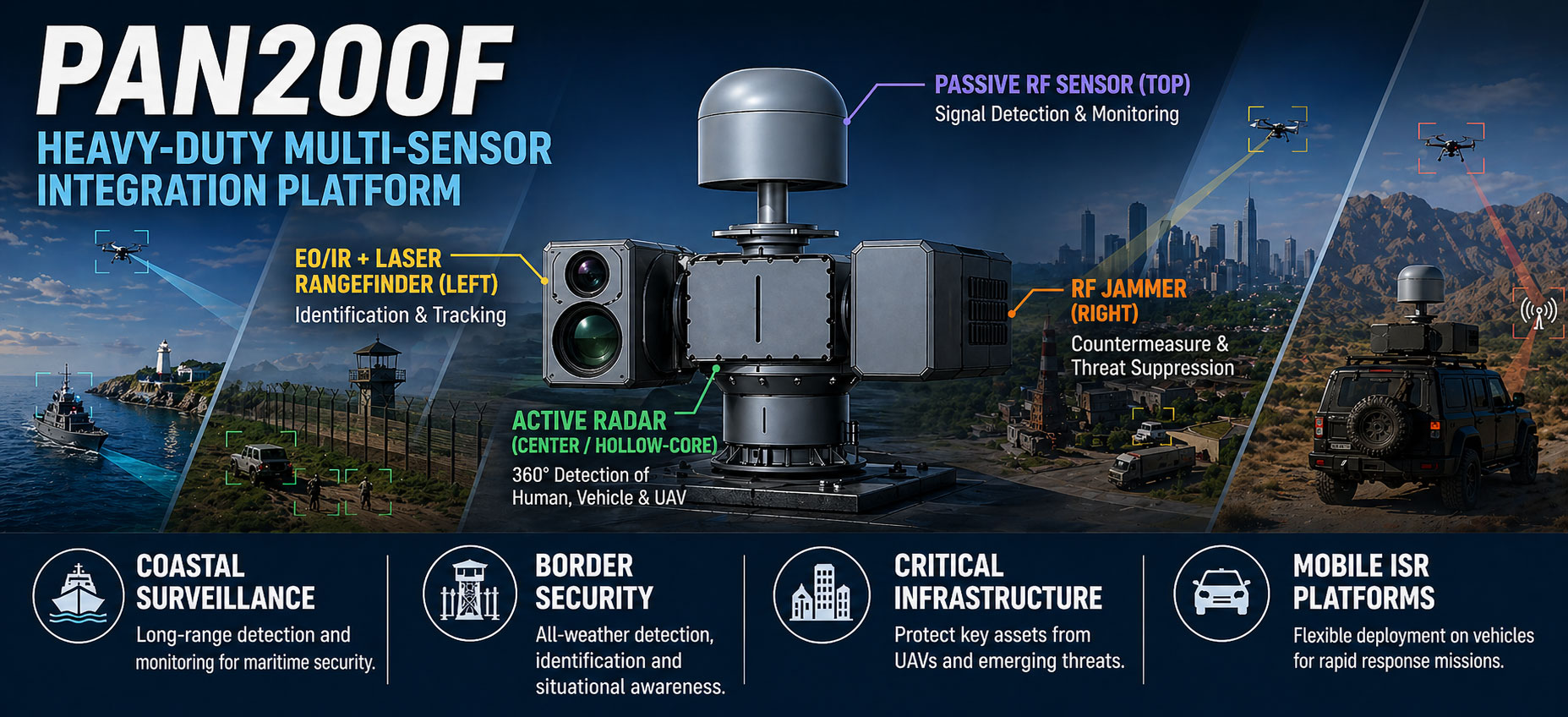

Build Precise, Unified, and Deployment-Ready Detection & Countermeasure Systems
A unified platform for integrating radar, EO/IR, RF detection, and jamming modules.
Delivers precise alignment, synchronized operation, and full-system coordination in a single coordinate framework.
Key Highlights
Core Capabilities
|
Capability |
PAN200F Performance |
User Value |
|
Unified Sensor Alignment |
Multi-axis co-aligned structure |
Eliminates cross-axis error, improves tracking accuracy |
|
High-Precision Positioning |
±0.03° preset accuracy |
Enables accurate detection, tracking, and targeting |
|
Multi-Sensor Integration |
Top ≤100 kg, side ≤50 kg each |
Deploy full systems (Radar + EO/IR + RF) on one platform |
|
Smooth Motion Control |
0.01°/s to 100°/s |
Stable tracking + fast response capability |
|

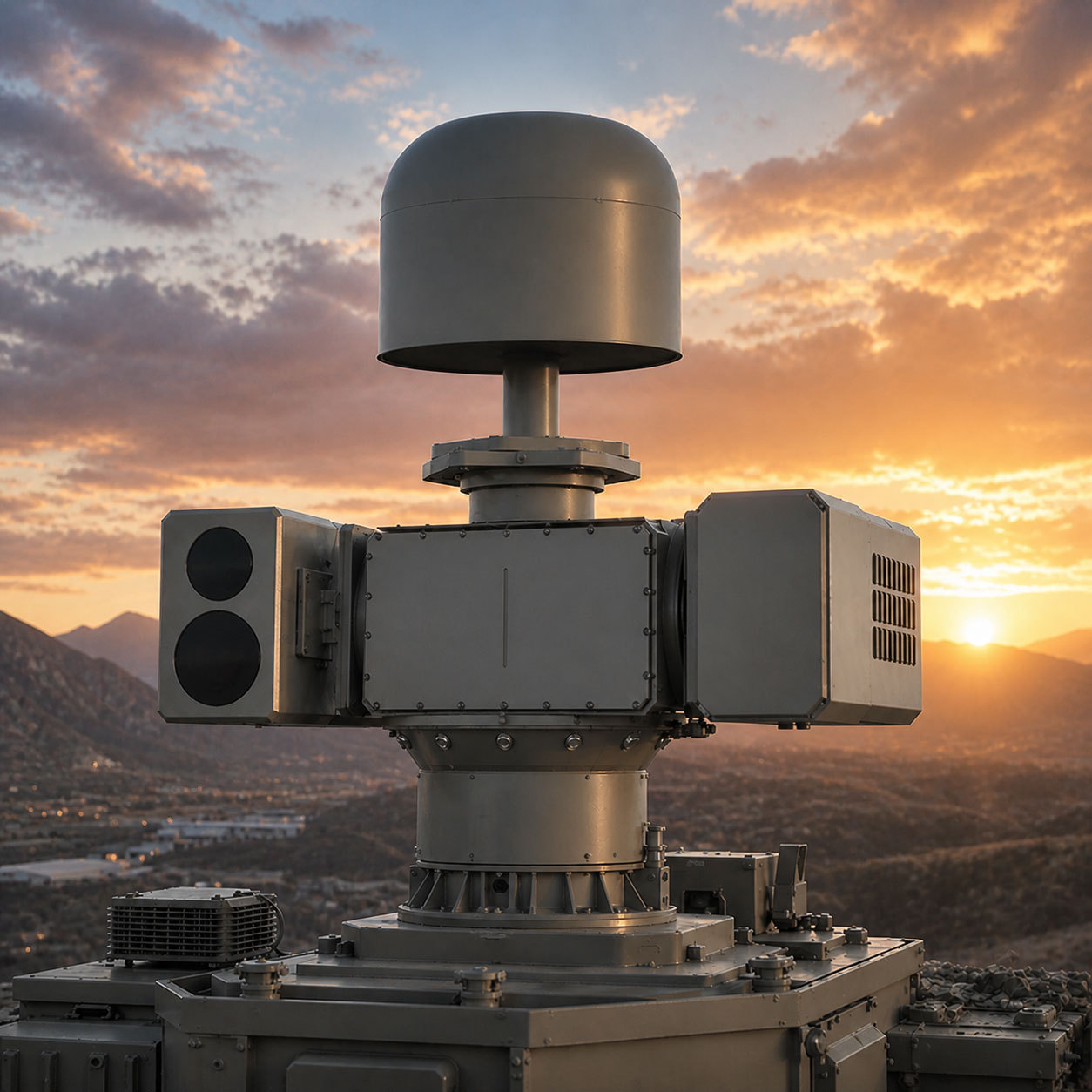

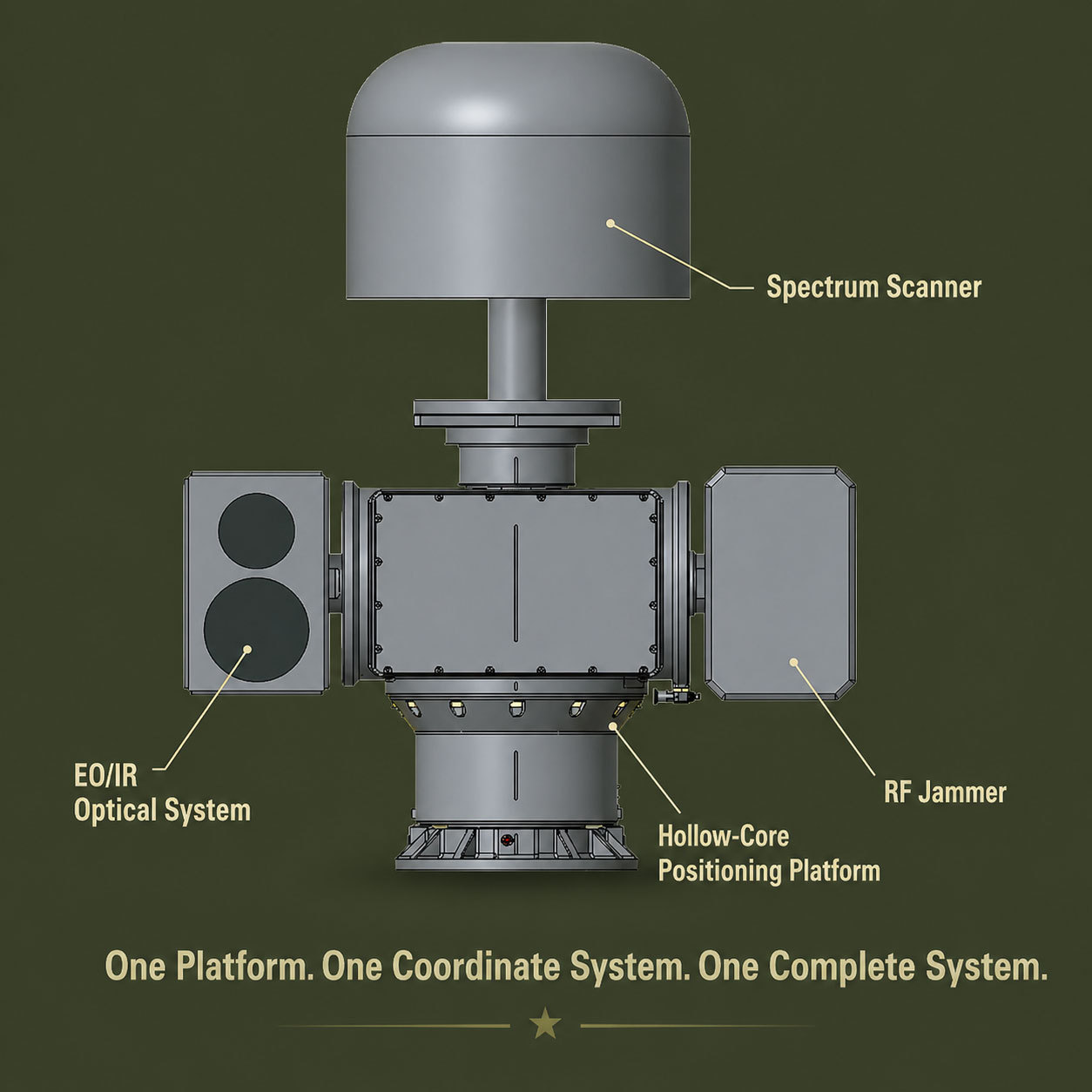

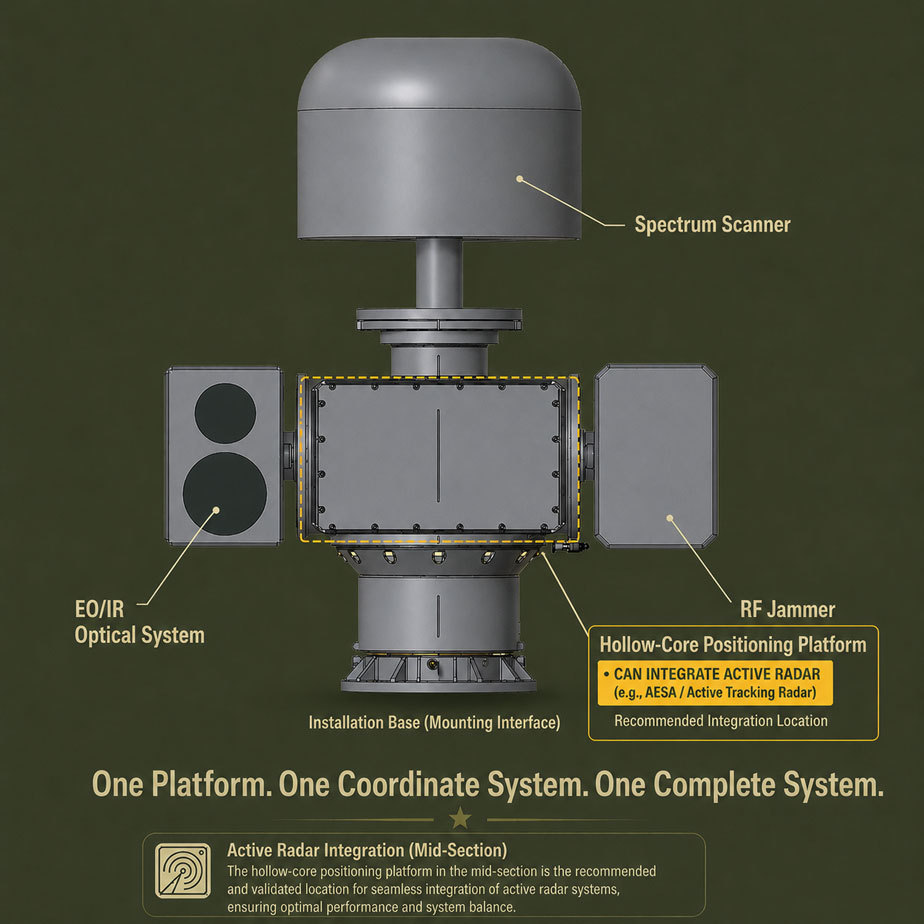

Centralized Radar Integration |
Hollow-core design |
Ensures radar is aligned with all other sensors |
|
Real-Time Feedback |
Angle, zoom, focus data feedback |
Supports closed-loop control and system synchronization |
|
Modular Architecture |
Modular electronics and structure |
Easier integration, maintenance, and upgrade |
|
Harsh Environment Operation |
-40°C to +65°C, IP66 |
Reliable outdoor and mission-critical deployment |
Technical Specifications
|
Parameter |
Specification |
|
Model |
PAN200F |
|
Rotation Speed (Azimuth) |
0.01° – 100°/s |
|
Rotation Speed (Elevation) |
0.01° – 80°/s |
|
Rotation Range (Azimuth) |
0–360° continuous |
|
Rotation Range (Elevation) |
+90° to -90° |
|
Positioning Accuracy |
±0.03° |
|
Preset Positions |
2048 |
|
Payload Capacity |
Top ≤100 kg; Side ≤50 kg each |
|
Communication Protocol |
Pelco-D / Pelco-P |
|
Communication Interface |
RS485 (optional RS422 with real-time feedback) |
|
Baud Rate |
2400 / 4800 / 9600 / 19200 bps |
|
Power Supply |
DC48V |
|
Power Consumption |
≤100W |
|
Operating Temperature |
-40°C to +65°C |
|
Storage Temperature |
-45°C to +70°C |
|
Protection Level |
IP66 |
|
Weight |
200 kg (without payload) |
|
Dimensions |
600 × 520 × 788 mm (without payload) |
|
Communication Interface |
RS485 (optional RS422 with real-time feedback) |
|
Baud Rate |
2400 / 4800 / 9600 / 19200 bps |
|
Power Supply |
DC48V |
|
Power Consumption |
≤100W |
|
Operating Temperature |
-40°C to +65°C |
|
Storage Temperature |
-45°C to +70°C |
|
Protection Level |
IP66 |
|
Weight |
200 kg (without payload) |
|
Dimensions |
600 × 520 × 788 mm (without payload) |
|
Model |
Positioning Role |
Axis |
Max Payload |
Speed Range |
Accuracy |
Key Strength |
Typical Payload Type |
Best Use Case |
|
PAN200F |
Multi-Sensor Integration Platform |
Dual-axis |
Top 100kg + Side 50kg×2 |
Up to 100°/s |
±0.03° |
Multi-sensor alignment (same coordinate system) |
Radar + EO/IR + RF + Jammer |
Complete counter-UAS / integrated systems |
|
PAN80R |
High-Speed Radar Platform |
Single-axis |
80kg |
Up to 180°/s |
±0.05° |
Ultra-fast mechanical scanning |
Doppler radar / phased-array radar |
Radar scanning & airspace monitoring |
|
PAN70Y |
Heavy-Duty Stable Platform |
Dual-axis |
70–100kg |
Medium speed |
±0.05° (closed-loop) |
Self-locking + high stability |
Large radar / antenna / EO systems |
Fixed-point monitoring / heavy payload |
|
PAN3Y |
Lightweight Mobile Platform |
Dual-axis |
3kg |
Low speed |
±0.1° |
Compact + low power + mobile-ready |
Small EO/IR / sensors |
Vehicle / UAV / portable deployment |
We don’t just provide platforms — we enable full system integration:
Standardized Communication Protocols
→ Seamless control of sensors, payloads, and external systems
Interface-Level Integration Support
→ Electrical, structural, and data interface alignment
System-Level Coordination
→ Multi-sensor synchronization（Especially with PAN200F）
Engineering Support During Integration
→ From mounting to system commissioning
