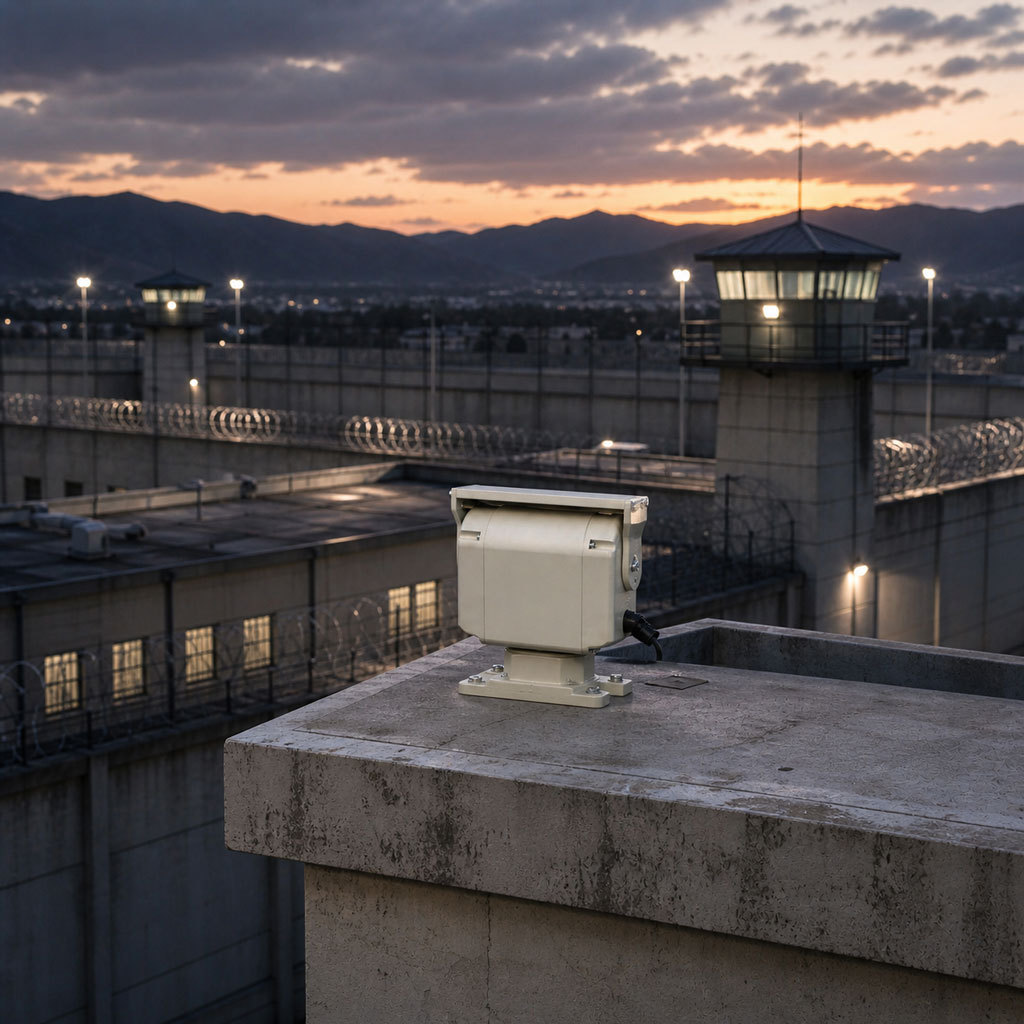

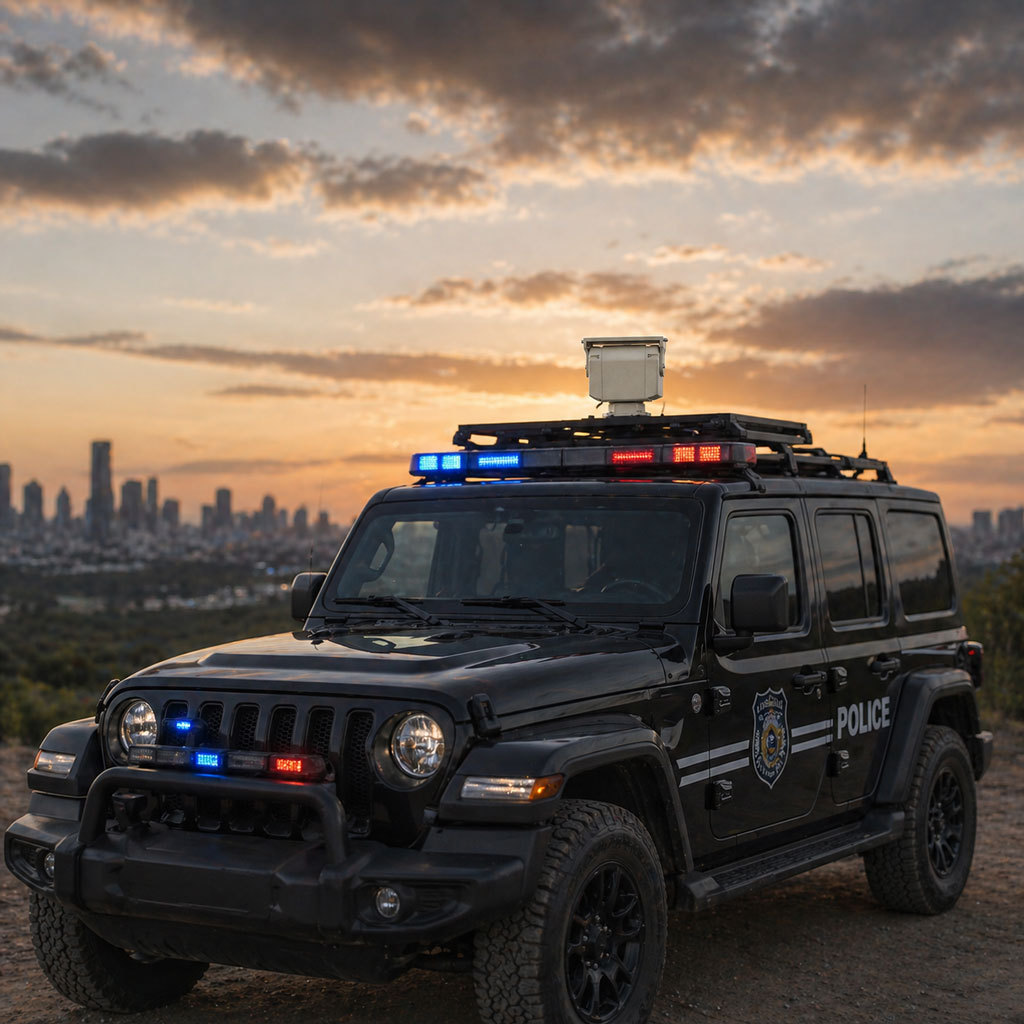

Lightweight Dual-Axis PTZ Platform for Mobile and Compact Systems
Compact and low-power platform for mobile and airborne applications.
Provides flexible dual-axis control for lightweight sensors in dynamic environments.
Key Highlights
Core Capabilities
|
Capability |
PAN3Y Performance |
User Value |
|
Lightweight Deployment |
3.6 kg platform weight |
Easy integration on mobile and airborne platforms |
|
Payload Support |
Up to 3 kg |
Compatible with compact EO/IR and sensor modules |
|
Dual-Axis Positioning |
360° azimuth, -60° to +20° elevation |
Flexible directional control for observation and tracking |
|
Precision Control |
±0.1° positioning accuracy |
Reliable pointing for lightweight sensing tasks |
|
Self-Locking Mechanism |
Mechanical self-locking |
Stable positioning without drift |
|
Low Power Operation |
≤60W (≤2W standby) |
Suitable for battery-powered and portable systems |
|
Simple Communication |
TTL interface (Pelco-D protocol) |
Fast integration with lightweight control systems |
|
Compact Form Factor |
Small footprint design |
Fits tight installation spaces |
|
Environmental Adaptability |
IP66, -25°C to +65°C |
Reliable outdoor and mobile deployment |
Technical Specifications
|
Parameter |
Specification |
|
Model |
PAN3Y |
|
Rotation Speed (Azimuth) |
0.01° – 20°/s |
|
Rotation Speed (Elevation) |
0.01° – 10°/s |
|
Rotation Range (Azimuth) |
0–360° continuous |
|
Rotation Range (Elevation) |
-60° to +20° |
|
Positioning Accuracy |
±0.1° |
|
Preset Positions |
200 |
|
Payload Capacity |
≤3 kg |
|
Drive Type |
Open-loop system |
|
Communication Protocol |
Pelco-D |
|
Communication Interface |
TTL |
|
Power Supply |
DC24V |
|
Power Consumption |
≤60W (≤2W standby) |
|
Operating Temperature |
-25°C to +65°C |
|
Storage Temperature |
-40°C to +65°C |
|
Protection Level |
IP66 |
|
Weight |
3.6 kg |
|
Dimensions |
184 × 100 × 175 mm |
|
Installation Mode |
Top load / Side load |
|
Model |
Positioning Role |
Axis |
Max Payload |
Speed Range |
Accuracy |
Key Strength |
Typical Payload Type |
Best Use Case |
|
PAN200F |
Multi-Sensor Integration Platform |
Dual-axis |
Top 100kg + Side 50kg×2 |
Up to 100°/s |
±0.03° |
Multi-sensor alignment (same coordinate system) |
Radar + EO/IR + RF + Jammer |
Complete counter-UAS / integrated systems |
|
PAN80R |
High-Speed Radar Platform |
Single-axis |
80kg |
Up to 180°/s |
±0.05° |
Ultra-fast mechanical scanning |
Doppler radar / phased-array radar |
Radar scanning & airspace monitoring |
|
PAN70Y |
Heavy-Duty Stable Platform |
Dual-axis |
70–100kg |
Medium speed |
±0.05° (closed-loop) |
Self-locking + high stability |
Large radar / antenna / EO systems |
Fixed-point monitoring / heavy payload |
|
PAN3Y |
Lightweight Mobile Platform |
Dual-axis |
3kg |
Low speed |
±0.1° |
Compact + low power + mobile-ready |
Small EO/IR / sensors |
Vehicle / UAV / portable deployment |
We don’t just provide platforms — we enable full system integration:
Standardized Communication Protocols
→ Seamless control of sensors, payloads, and external systems
Interface-Level Integration Support
→ Electrical, structural, and data interface alignment
System-Level Coordination
→ Multi-sensor synchronization（Especially with PAN200F）
Engineering Support During Integration
→ From mounting to system commissioning
