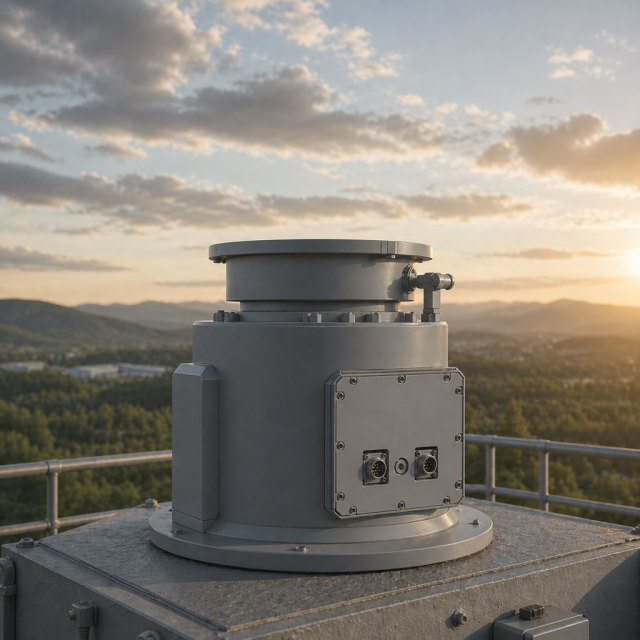

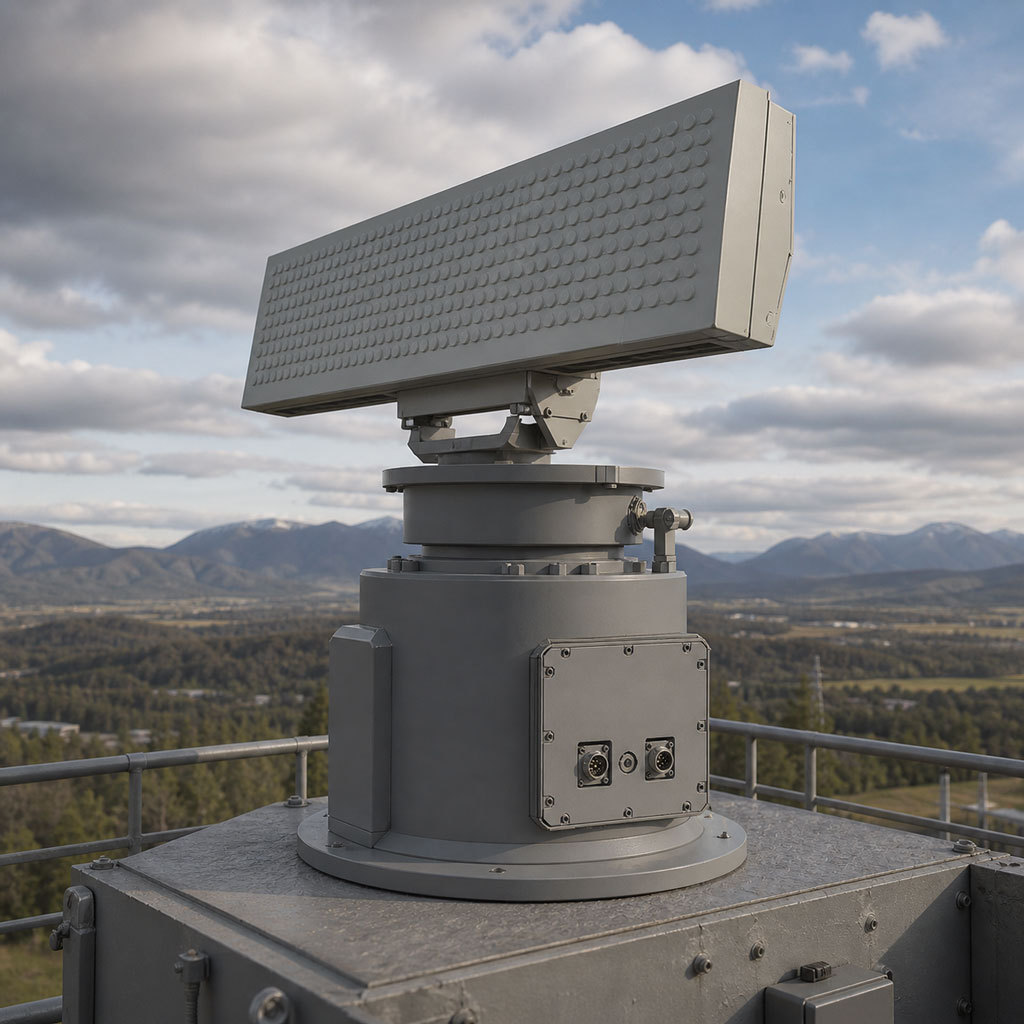

Enables high-speed, stable, and precise mechanical scanning for radar systems
Designed for radar mechanical scanning with up to 180°/s rotation speed.
Enables faster coverage, higher refresh rates, and improved target detection performance.
Key Highlights
Core Capabilities
|
Capability |
PAN80R Performance |
User Value |
|
High-Speed Scanning |
Up to 180°/s rotation speed |
Faster scan cycles and higher target update rate |
|
Precision Positioning |
±0.05° accuracy |
Stable radar beam alignment and reliable tracking |
|
Heavy Radar Payload Support |
Top load up to 80 kg |
Compatible with medium/long-range radar systems |
|
Continuous Rotation |
360° continuous rotation |
Full-area coverage without blind zones |
|
Direct Drive Motion Control |
Servo direct drive |
Zero backlash, smooth motion, fast response |
|
Real-Time Feedback |
Angle feedback via RS485/RS422 |
Enables closed-loop control and system synchronization |
|
Environmental Adaptability |
-40°C to +65°C, IP66 |
Reliable long-term outdoor deployment |
|
Compact & Lightweight Design |
≤30 kg total weight |
Easy integration into fixed or mobile platforms |
Technical Specifications
|
Parameter |
Specification |
|
Model |
PAN80R |
|
Rotation Speed |
0.01° – 180°/s |
|
Rotation Range |
360° continuous |
|
Positioning Accuracy |
±0.05° |
|
Preset Positions |
200 |
|
Payload Capacity |
Top load ≤80 kg |
|
Drive Type |
Servo direct drive |
|
Communication Protocol |
Pelco-D / Pelco-P |
|
Communication Interface |
RS485 (optional RS422 with feedback) |
|
Baud Rate |
2400 / 4800 / 9600 / 19200 bps |
|
Power Supply |
DC28V ±20% |
|
Power Consumption |
≤90W |
|
Operating Temperature |
-40°C to +65°C |
|
Storage Temperature |
-45°C to +70°C |
|
Protection Level |
IP66 |
|
Weight |
≤30 kg |
|
Dimensions |
360 × 360 × 291 mm |
|
Model |
Positioning Role |
Axis |
Max Payload |
Speed Range |
Accuracy |
Key Strength |
Typical Payload Type |
Best Use Case |
|
PAN200F |
Multi-Sensor Integration Platform |
Dual-axis |
Top 100kg + Side 50kg×2 |
Up to 100°/s |
±0.03° |
Multi-sensor alignment (same coordinate system) |
Radar + EO/IR + RF + Jammer |
Complete counter-UAS / integrated systems |
|
PAN80R |
High-Speed Radar Platform |
Single-axis |
80kg |
Up to 180°/s |
±0.05° |
Ultra-fast mechanical scanning |
Doppler radar / phased-array radar |
Radar scanning & airspace monitoring |
|
PAN70Y |
Heavy-Duty Stable Platform |
Dual-axis |
70–100kg |
Medium speed |
±0.05° (closed-loop) |
Self-locking + high stability |
Large radar / antenna / EO systems |
Fixed-point monitoring / heavy payload |
|
PAN3Y |
Lightweight Mobile Platform |
Dual-axis |
3kg |
Low speed |
±0.1° |
Compact + low power + mobile-ready |
Small EO/IR / sensors |
Vehicle / UAV / portable deployment |
We don’t just provide platforms — we enable full system integration:
Standardized Communication Protocols
→ Seamless control of sensors, payloads, and external systems
Interface-Level Integration Support
→ Electrical, structural, and data interface alignment
System-Level Coordination
→ Multi-sensor synchronization（Especially with PAN200F）
Engineering Support During Integration
→ From mounting to system commissioning
