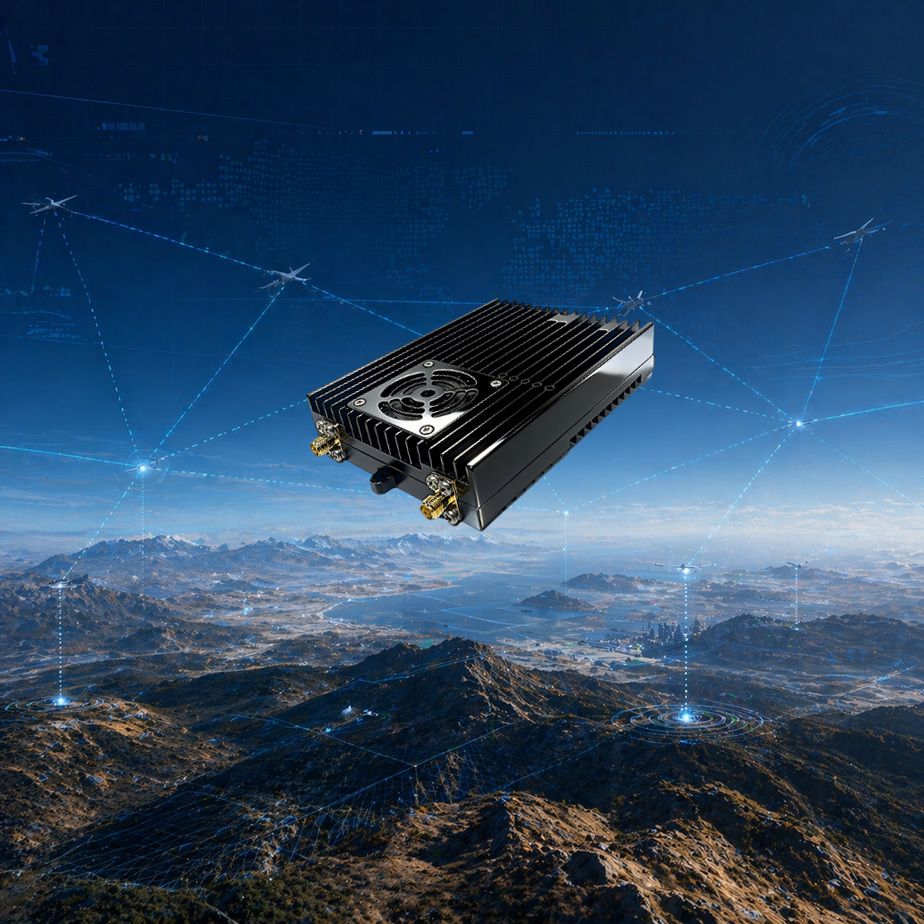

50km-class Mesh Datalink S905M

The S905M MESH Datalink is designed for reliable long-range communication in complex and dynamic environments. Based on SDR architecture, it supports self-forming and self-healing MESH networking, enabling seamless data relay between UAVs, UGVs, and ground stations.

With adaptive frequency hopping, strong anti-interference capability, and AES-256 encryption, the system ensures stable transmission of video, telemetry, and command data even in contested or signal-challenged environments.

Built for real-world missions, S905M delivers consistent beyond-line-of-sight (BLOS) connectivity, making it ideal for multi-node operations and wide-area coverage.

  • 50km-class Mesh Datalink S905M
  • 50km-class Mesh Datalink S905M

Description

Key Features

Feature

Description

True MESH Networking

Self-organizing & self-healing multi-node network

Adaptive Frequency Hopping

Auto-avoid interference (up to 100 MHz hopping range)

High Throughput

Up to 40 Mbps for video & telemetry

Strong Anti-Jamming

Stable link under complex EM environments

AES-256 Encryption

Secure data transmission

Spectrum Awareness

Real-time interference sensing across nodes

Flexible Frequency

0.6–2.7 GHz customizable

Multi-Platform Support

UAV, UGV, and ground station integration


Technical Specifications

Category

Specification

Model

S905M

Network Type

MESH (self-organizing, multi-hop)

Transmission Distance

Up to 50 km (MESH, LOS)

Frequency Range

0.7–2.7 GHz (default 1.4 GHz)

Frequency Hopping

Adaptive (anti-jamming, up to 100 MHz range)

Throughput

Up to 40 Mbps (80 Mbps optional)

Modulation

COFDM / QPSK / 16QAM / 64QAM

Transmission Power

0–31 dBm

Latency

< 30 ms

Encryption

AES-256

Interfaces

RJ45 ×2, RS232 ×1, TTL ×1, SBUS ×1 (configurable)

Dimensions

129 × 83 × 21 mm

Weight

~255 g

Operating Temperature

-40°C to +65°C



Typical Applications


  • ISR missions, UAV reconnaissance & surveillance
  • Border & Coastal security, wide-area monitoring with relay networking
  • Emergency response, rapid deployment communication network
  • Public safety, patrol, inspection, and incident monitoring


Key Differences (At-a-Glance)

Dimension

S905M

S910M

S920M

S930M

S9150D

Size / Weight

★★★★★ (Smallest)

★★★★☆

★★★☆☆

★★☆☆☆

★☆☆☆☆ (Largest)

Transmission Range

★★☆☆☆

★★★☆☆

★★★★☆

★★★★★

★★★★★+

Throughput

★★☆☆☆

★★★☆☆

★★★★☆

★★★★★

★★★★★+

Anti-Jamming Capability

★★★☆☆

★★★★☆

★★★★☆

★★★★★

★★★★★+

Networking Capability

★★☆☆☆

★★★★☆

★★★★★

★★★★★+

★★★★★+

Typical Platform

Micro UAV

Small UAV

Medium UAV

Large UAV / System-level

MALE/HALE UAV, Ground Stations, Complex Systems
