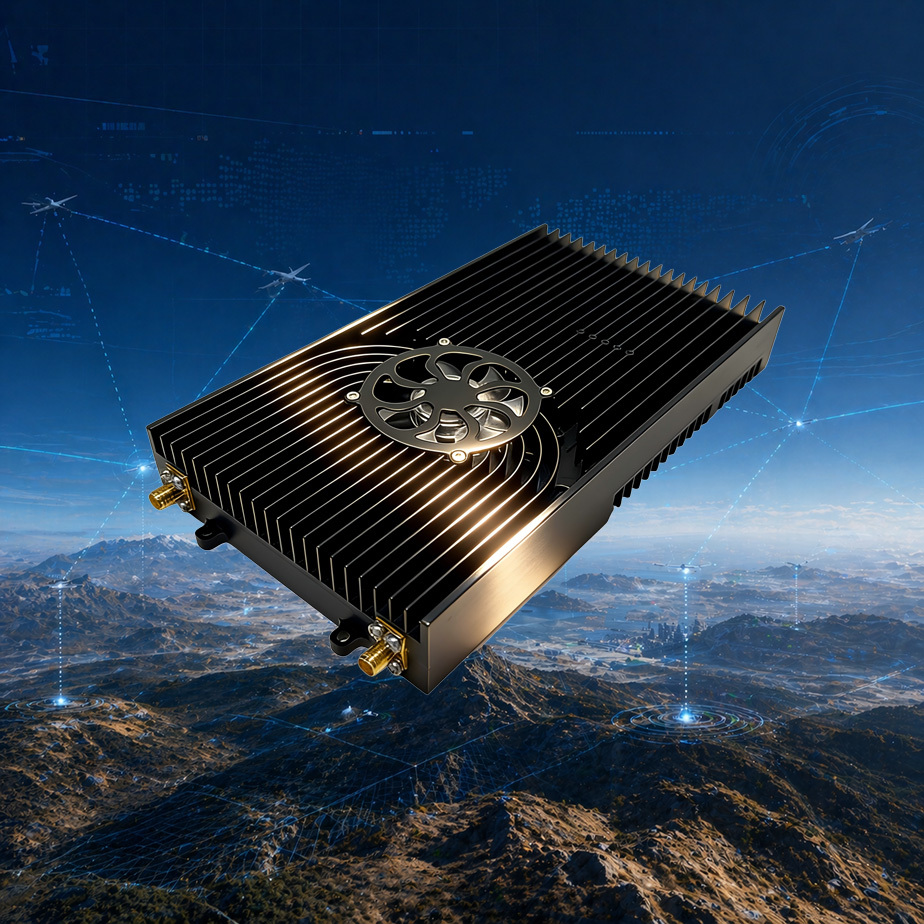

Name: 200km-class Mesh Datalink S920M
Brand: GT Advanced Defense & Tactical Solutions
Availability: InStock
Rating: 5 (1 reviews)

Description

Key Features

Feature	Description
Self-Organizing MESH Network	Multi-node networking with automatic relay and self-healing capability
Adaptive Frequency Hopping	Real-time frequency switching to avoid interference and maintain link stability
Wide-Area Coverage (200 km)	Multi-hop communication extends operational range
Multi-Node Communication	Supports UAV-to-UAV and UAV-to-ground simultaneous transmission
High Data Throughput	Up to 40 Mbps for telemetry, payload, and video
Full-Network Awareness	Nodes monitor RF environment for optimized performance
Flexible Frequency Configuration	Customizable from 0.6–2.7 GHz
Secure Communication (AES-256)	Encrypted data transmission

Technical Specifications

Category	Specification
Model	S920M
Network Type	MESH (self-organizing, multi-hop)
Transmission Distance	Up to 200 km (MESH, LOS)
Frequency Range	0.7–2.7 GHz (default 1.4 GHz)
Frequency Hopping	Adaptive (anti-jamming)
Throughput	Up to 40 Mbps (80 Mbps optional)
Modulation	COFDM / QPSK / 16QAM / 64QAM
Transmission Power	0–40 dBm
Latency	< 30 ms
Encryption	AES-256
Interfaces	RJ45 ×2, RS232 ×1, TTL ×1, SBUS ×1 (configurable)
Dimensions	209.9 × 113 × 28 mm
Weight	~600 g
Operating Temperature	-40°C to +65°C

Typical Applications

Key Differences (At-a-Glance)

Dimension	S905M	S910M	S920M	S930M	S9150D
Size / Weight	★★★★★ (Smallest)	★★★★☆	★★★☆☆	★★☆☆☆	★☆☆☆☆ (Largest)
Transmission Range	★★☆☆☆	★★★☆☆	★★★★☆	★★★★★	★★★★★+
Throughput	★★☆☆☆	★★★☆☆	★★★★☆	★★★★★	★★★★★+
Anti-Jamming Capability	★★★☆☆	★★★★☆	★★★★☆	★★★★★	★★★★★+
Networking Capability	★★☆☆☆	★★★★☆	★★★★★	★★★★★+	★★★★★+
Typical Platform	Micro UAV	Small UAV	Medium UAV	Large UAV / System-level	MALE/HALE UAV, Ground Stations, Complex Systems
