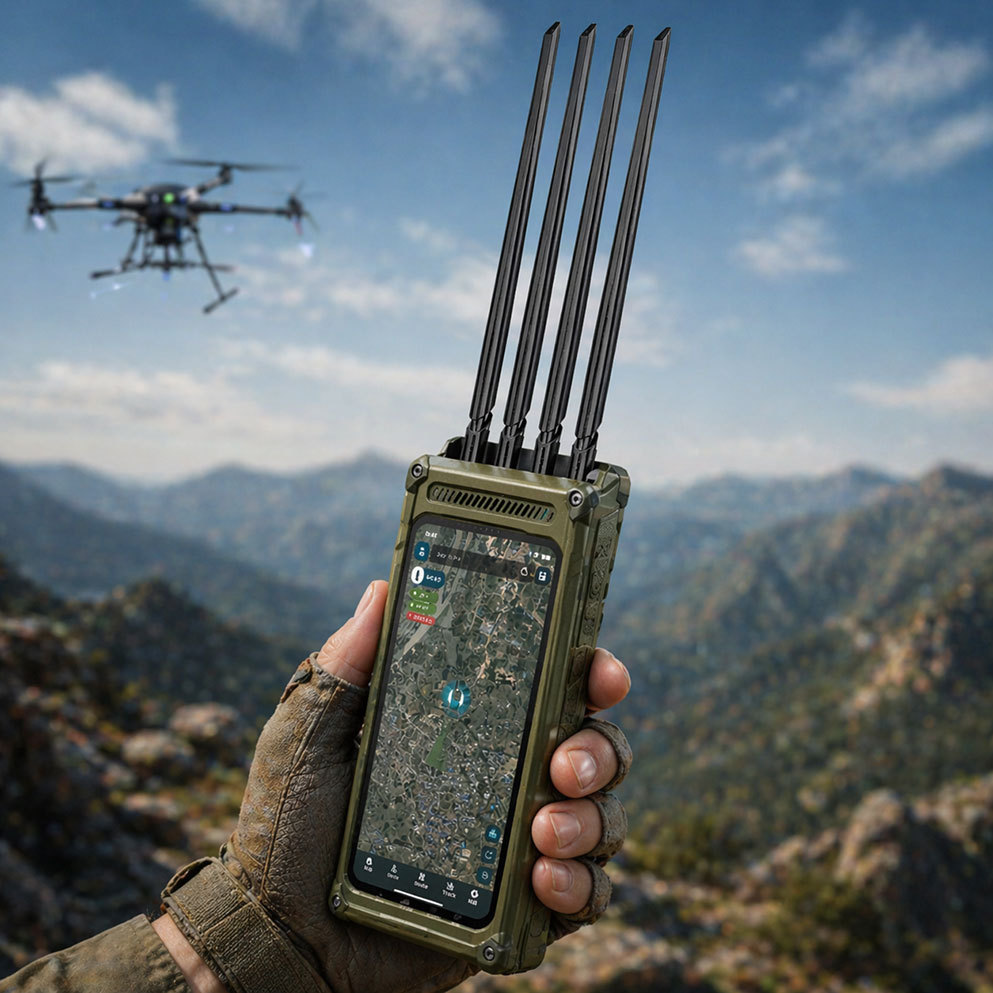

Product Overview
SPT3 is built from the operator’s perspective: before you can stop a drone, you need to find it fast, know where it is coming from, and decide how to respond. This handheld terminal combines passive RF detection, pilot localization, FPV parsing, and GNSS spoofing into one mobile device, enabling a complete detect-to-counter workflow in the hands of a single operator.
Key Features
|
No. |
Product |
Features |
|
1 |
Detect Before Visual Contact |
With a 2–5 km passive RF detection radius, users receive early warning long before a drone reaches the protected zone. |
|
2 |

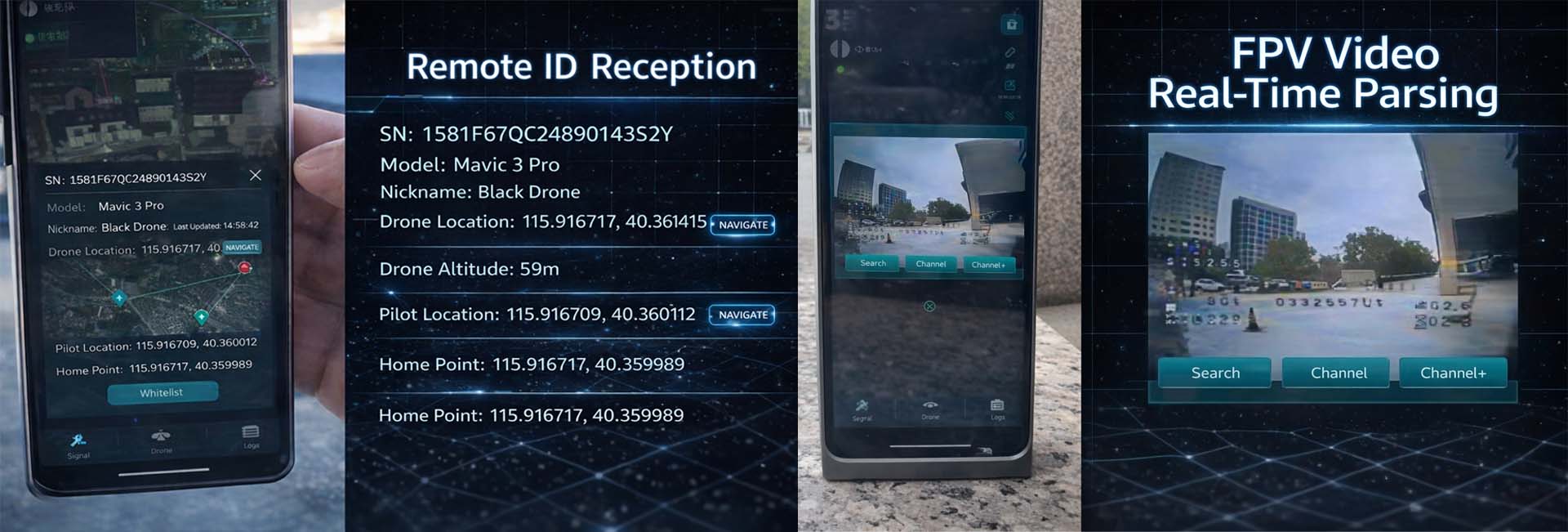

Find the Drone, Then Find the Pilot |
SPT3 does more than alert on drone presence. It helps users locate:
This enables teams to move directly toward the real threat source. |
|
3 |
Counter FPV and Homemade Drones |
The integrated FPV signal parsing capability helps users identify self-built and racing-style drones that are otherwise difficult to track. |
|
4 |

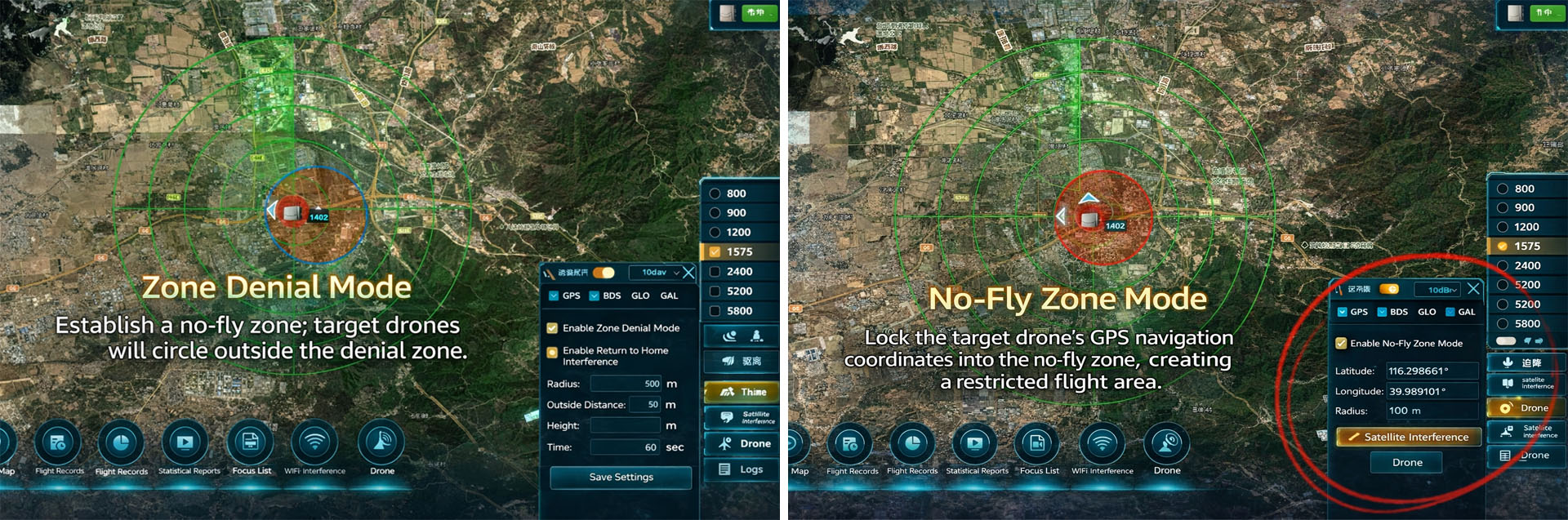

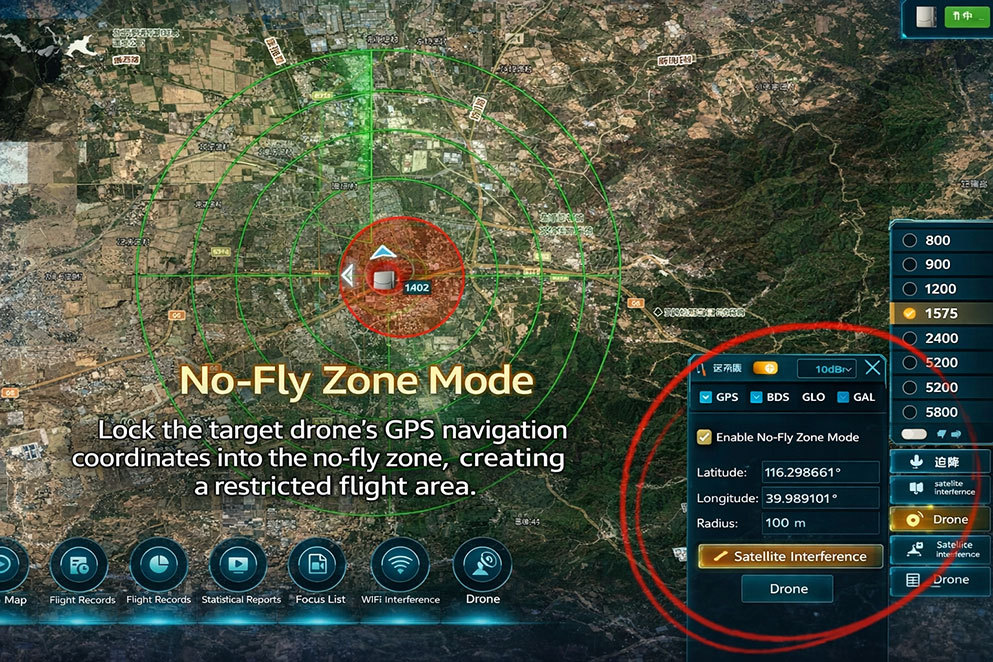

Immediate Spoofing Countermeasure |
Inherited from SPA2’s proven architecture, the four-mode GNSS spoofing module allows users to:
|
|
5 |
Covert Tactical Operation |
Passive detection means the system does not actively emit signals during surveillance, helping operators remain concealed during sensitive missions. |
|
6 |
Built for Mobile Teams |
At approximately 600g, SPT3 can be carried for long patrols and quickly deployed by:
|
Technical Specifications
|
NO. |
Parameter |
Specification |
|
|
1 |
Product Model |
SPT3 |
|
|
2 |
Detect |
Supported Bands |
70MHz～6GHz |
|
3 |
Operation Mode |
Passive Detection and Positioning |
|
|
4 |
Detection Radius |
Up to 5 km, depending on environment and target UAV type |
|
|
5 |
Positioning Accuracy |
≤ 3 m |
|
|
6 |
Simultaneous Target Capacity |
≥15 UAVs |
|
|
7 |
Mobile Operation |
≥ 85 km/h (Stable operation while moving at high speeds) |
|
|
8 |
Coverage |
360° |
|
|
9 |
Spoof |
Countermeasure Method |
GNSS Navigation Spoofing |
|
10 |
Supported Bands |
GPS L1 / Galileo E1 / GLONASS G1 |
|
|
11 |
Response Time |
≤ 5 s |
|
|
12 |
Effective Radius |
200–800 m |
|
|
13 |
Coverage |
360° |
|
|
14 |
Physically |
Battery Capacity |
8000 mAh, can charges via Type-C port |
|
15 |
Working Time |
Up to 4 h |
|
|
16 |
Weight |
≤ 1 kg |
|
SPT3 is suitable for spoofing the following types of unmanned systems:
Detects over 800 drone models, supporting precise positioning for DJI (including O4), Autel, FIMI, and other drones, but when hostile drones are equipped with advanced CRPA anti-jamming / anti-spoofing terminals such as 4-element GAP2501/AJT105S or 16-element AJT120S, SPT3 spoofing effectiveness may be significantly reduced or neutralized.
