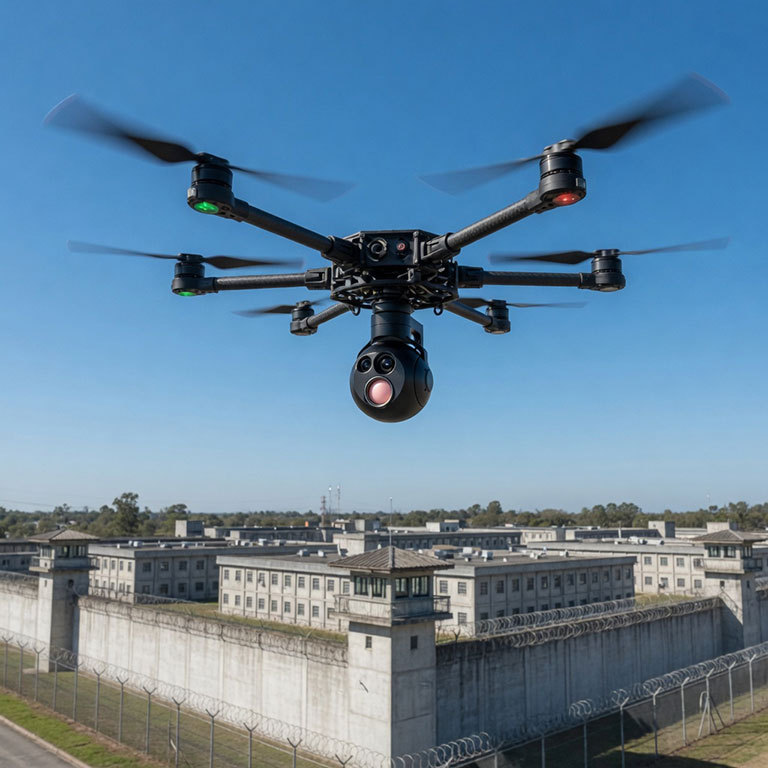

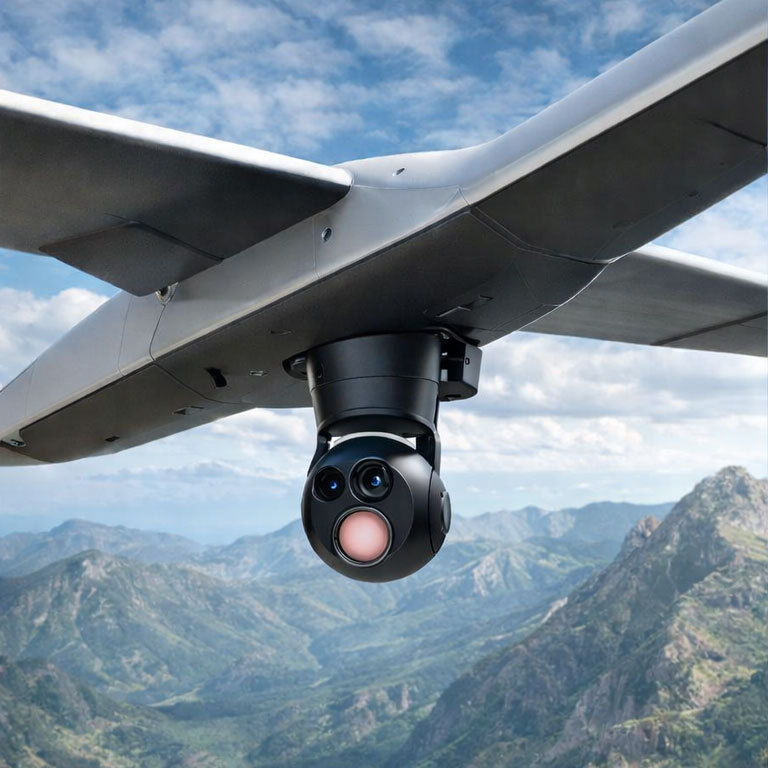

TAD200 Lightweight AI-Enabled Multi-Sensor ISR Gimbal Payload for Micro UAVs

No.

Capability

Description

1

Day & Night Surveillance

EO + thermal imaging enables continuous operation in all lighting conditions

2

AI Detection & Tracking

Automatically detects and tracks human/vehicle targets in real time

• Max Targets: ≥32
• Recognition Accuracy: ≥85%
• Minimum Target Size: ≥16×16 pixels
• Tracking Frame Rate: 50 Hz
• Tracking Speed: 48 pixel/frame

3

Stable Aerial Imaging

2-axis stabilized gimbal ensures clear imagery during UAV movement

4

Zoom Observation

14× hybrid zoom for wide-area scanning and target detail capture

5

Real-Time Video Streaming

Low-latency IP video output for live monitoring and control

6

System Integration

Compatible with mainstream UAV flight control systems (MAVLink)

No.

Item

Thermal Imaging IR Performance (LWIR)

• 640×512 resolution
• NETD ≤50mK
• Thermal Imaging Performance (LWIR)

• Detection: ≥4.4 km
• Recognition: ≥1.4 km
• Identification: ≥0.73 km

• Detection: ≥0.96 km
• Recognition: ≥0.32 km
• Identification: ≥0.16 km

EO Camera (Dual-Focal System), Wide angle EO camera+ Long-focus EO camera

• Sensor: 4MP CMOS
• Optical Zoom: 1-4X
• Hybrid Zoom: Up to 14X

• Detection: ≥11 km
• Recognition: ≥3.9 km
• Identification: ≥1.9 km

• Detection: ≥2.5 km
• Recognition: ≥0.85 km
• Identification: ≥0.43 km

General

• Power Consumption: ~12 W
• Voltage: 12–32 V DC
• Video Output: 1080p  (H.264 / H.265)

High-Precision Stabilization System

• Stabilization: 2-axis (Yaw & Pitch)
• Yaw Range: -90° to +90°
• Pitch Range: -90° to +30°
• Accuracy: ≤0.3° (1σ)
• Angular Jitter: ≤0.1 mrad
• Max Speed: ≥60°/s

Seamless System Integration

• MAVLink protocol compatible
• RS422 / IP control interface
• RTSP / UDP/TS video streaming
• H.264 / H.265 encoding
• Compatible with mainstream autopilot systems
• Supports ground control station (GCS/VCS) integration

Size and weight

• 70mm×71.5mm×95.3mm
• 252g
