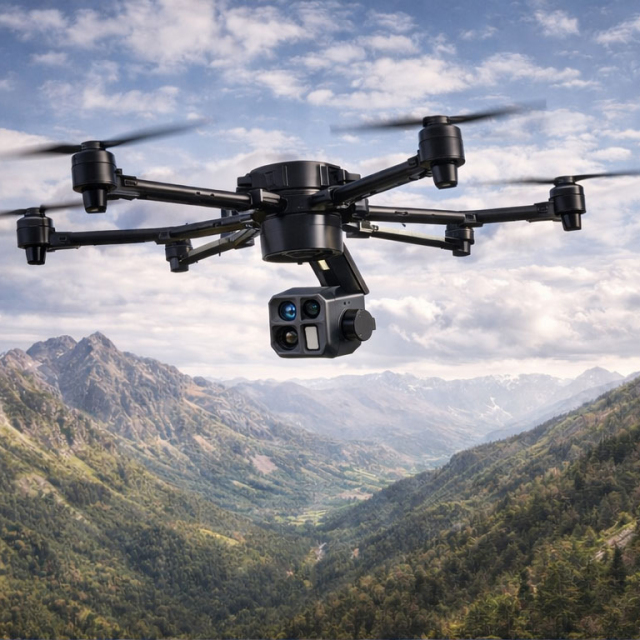

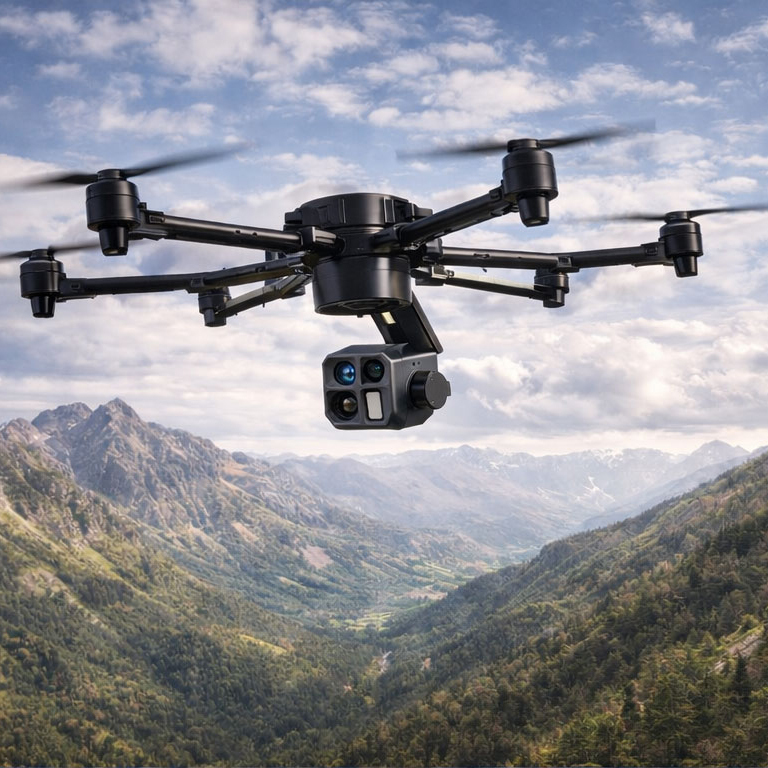

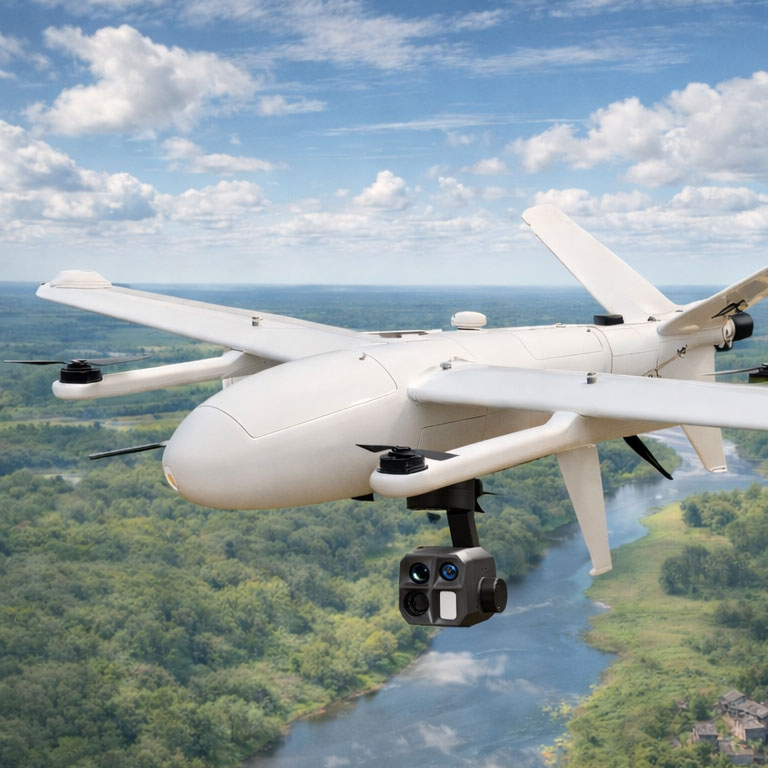

TAE380 Lightweight Multi-Sensor ISR Gimbal Payload

No.

Capability

Description

1

Dual EO System (Wide + Zoom)

Simultaneous situational awareness and detail observation

2

Thermal Imaging (640×512 LWIR)

Reliable detection in darkness, smoke and complex environments

3

Laser Range finding (up to 1.2km)

Accurate distance measurement for field operations

4

AI-Powered Tracking & Reacquisition

Stable tracking even under partial occlusion or interference

• Simultaneous Targets: ≥32
• Recognition Probability: ≥85%
• Tracking Rate: 50 Hz
• Minimum Target Size: ≥16×16 pixels

5

Full Digital Video Pipeline

4K streaming (H.264/H.265) via IP output

No.

Item

Description

1

Thermal Imaging IR Performance (LWIR)

• 640×512 resolution
• NETD ≤50mK
• Thermal Imaging Performance (LWIR)

• Detection: ≥3.3 km
• Recognition: ≥1.2 km
• Identification: ≥0.56 km

• Detection: ≥0.75 km
• Recognition: ≥0.25 km
• Identification: ≥0.12 km

2

EO Camera (Dual-Focal System), Wide angle EO camera+ Long-focus EO camera

• Sensor: 48MP CMOS
• Optical Zoom: 11X(15–50 mm)
• Hybrid Zoom: Up to 176X

• Detection: ≥17 km
• Recognition: ≥8.5 km
• Identification: ≥4.2 km

Human Target (1.7m × 0.5m):

• Detection: ≥3.7 km
• Recognition: ≥1.8 km
• Identification: ≥1.0 km

3

Laser Rangefinder

• Max Range: 1.2 km (vehicle target)
• Min Range: ≤5 m
• Accuracy: ±1 m
• Wavelength: 905 nm (eye-safe)

4

General

• Power Consumption: ~12 W
• Voltage: 12–26 V DC
• Video Output: 4K @30fps (H.264 / H.265)

5

High-Precision Stabilization System

• Stabilization: 3-axis (Yaw / Pitch / Roll)
• Yaw: 360° continuous
• Pitch: -130° ~ +90°
• Roll: ±60°
• Angular Accuracy: ≤0.3°
• Angular Jitter: ≤0.003° (1σ)

6

Seamless System Integration

• MAVLink protocol compatible
• RS422 / IP control interface
• RTSP / UDP/TS video streaming
• H.264 / H.265 encoding
• Compatible with mainstream autopilot systems
• Supports ground control station (GCS/VCS) integration

7

Size and weight

• 89.8mm×104.87mm×123.9mm
• 420g
