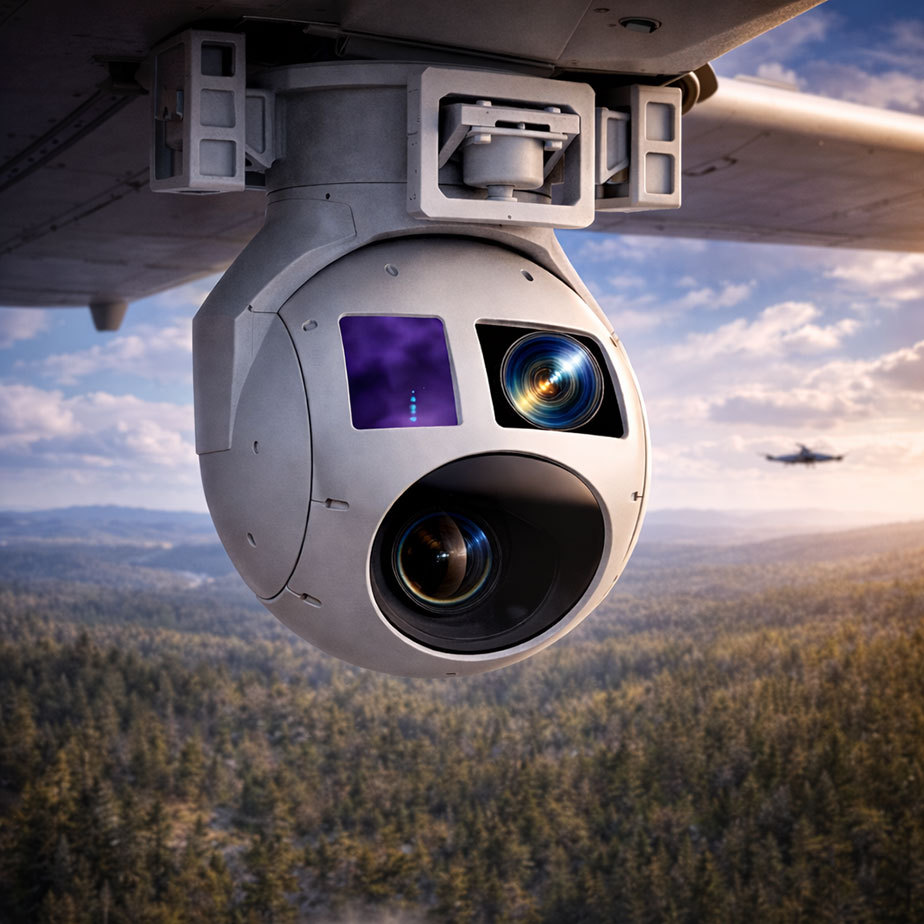

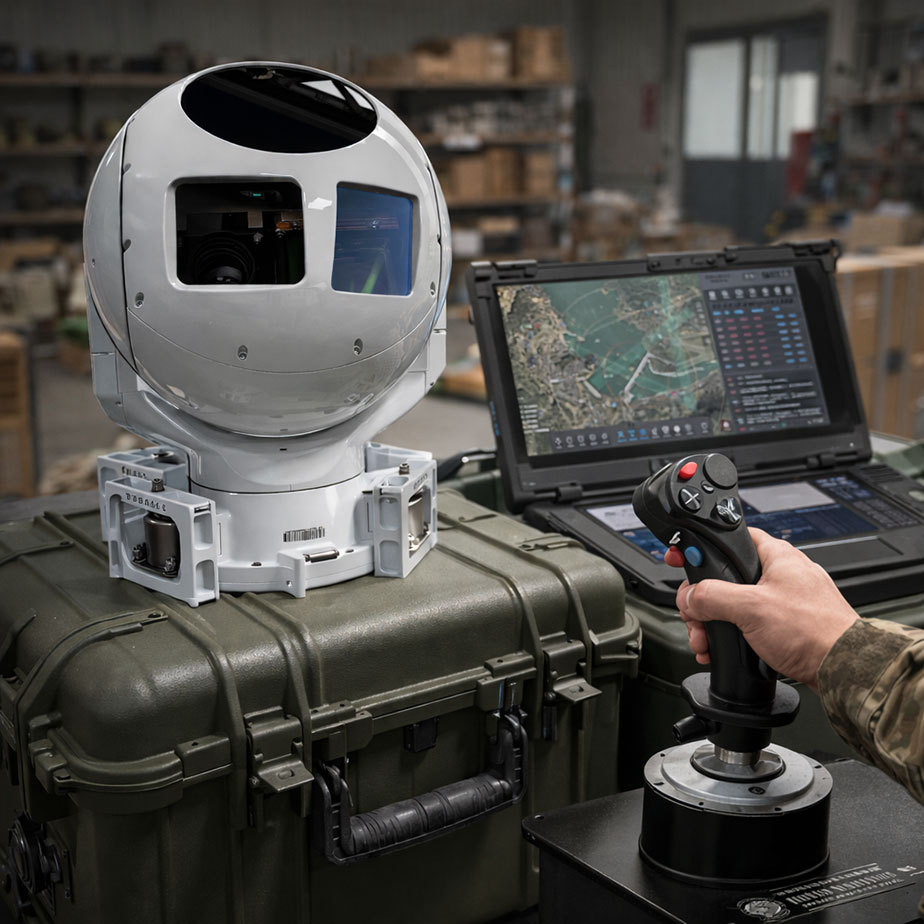

TAQ16FE Uncooled LWIR ISR Gimbal Payload

No.

Feature Category

Description

1

Dual-Spectrum Tracking Flexibility

Seamless switching between EO and IR tracking with continuous zoom support, maintaining lock under variable visibility conditions.

2

Precision Target Acquisition

Integrated laser ranging and geolocation enable accurate target positioning for reconnaissance and fire-control support.

3

Intelligent Tracking Efficiency

AI-powered recognition and automatic tracking reduce operator workload and enhance mission efficiency. AI-Driven Target Recognition & Tracking:

• Simultaneous tracking of ≥32 targets
• Recognition probability ≥85%
• Automatic target lock and re-capture
• Strong anti-interference capability
• Adjustable tracking gate and tracking point

 4

Integrated Target Geolocation

Real-time coordinate calculation using laser ranging, gimbal angles, and UAV attitude data for precise target positioning (≤30 m CEP @1 km).

No.

Item

Description

1

Uncooled LWIR Thermal Camera

• 640×512 resolution
• NETD ≤50mK
• Medium-to-Long-Range Detection Capability

• Detection: ≥21 km
• Recognition: ≥7 km
• Identification: ≥3.5 km

• Detection: ≥4.6 km
• Recognition: ≥1.5 km
• Identification: ≥0.8 km

2

EO Camera

• 2MP resolution
• 15 × optical zoom + 8× digital zoom
• Low-light imaging capability

• Detection: ≥10 km
• Recognition: ≥5.3 km
• Identification: ≥2.6 km

• Detection: ≥2.3 km
• Recognition: ≥1.1 km
• Identification: ≥0.6 km

3

Laser Rangefinder

• Range ≥8km
• Accuracy ≤±5m

4

Laser Illuminator

• Multi-code support
• Effective range ≥6–8km

5

High-Precision Stabilization System

• Pan Angle 360°×n (360° continuous rotation)
• Tilt Angle -20° ~ +90° (positive upward)
• Angular Position Accuracy ≤0.1°（1σ）
• Stabilization Accuracy ≤0.05mrad（1σ）
• High-speed response （≥60°/s）

6

Seamless System Integration

• MAVLink protocol compatible
• RS422 / IP control interface
• RTSP / UDP/TS video streaming
• H.264 / H.265 encoding
• Compatible with mainstream autopilot systems
• Supports ground control station (GCS/VCS) integration

7

Size and weight

• 290mm×290mm×390mm
• 16kg
