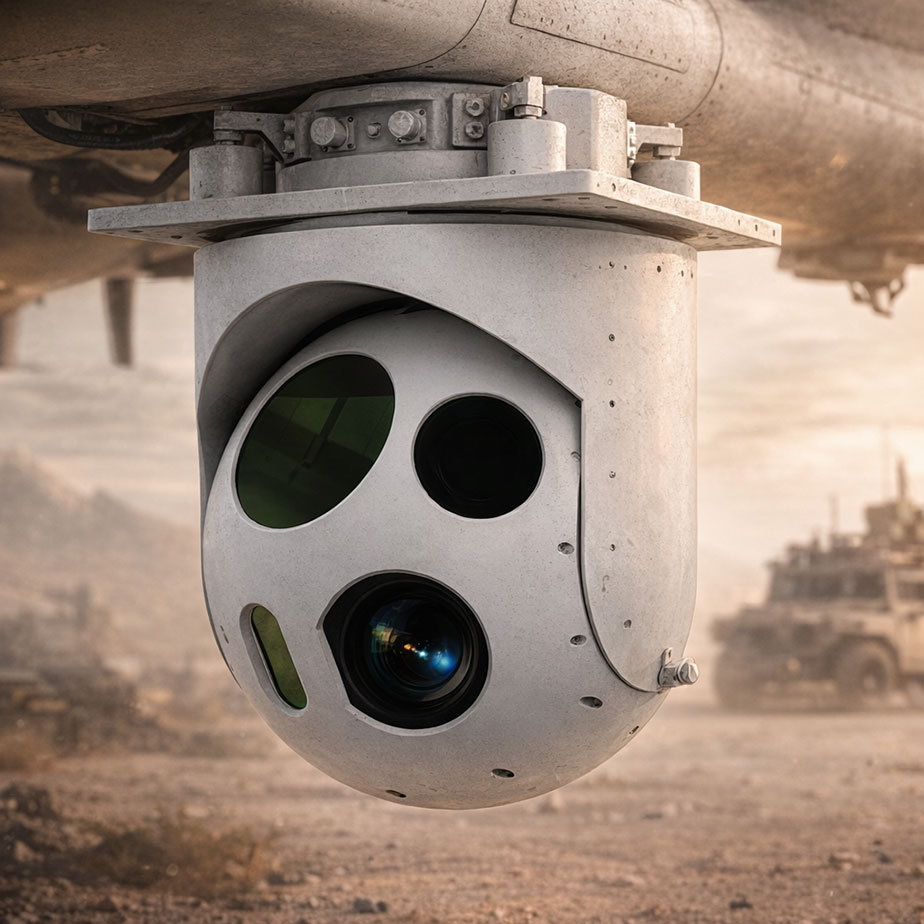

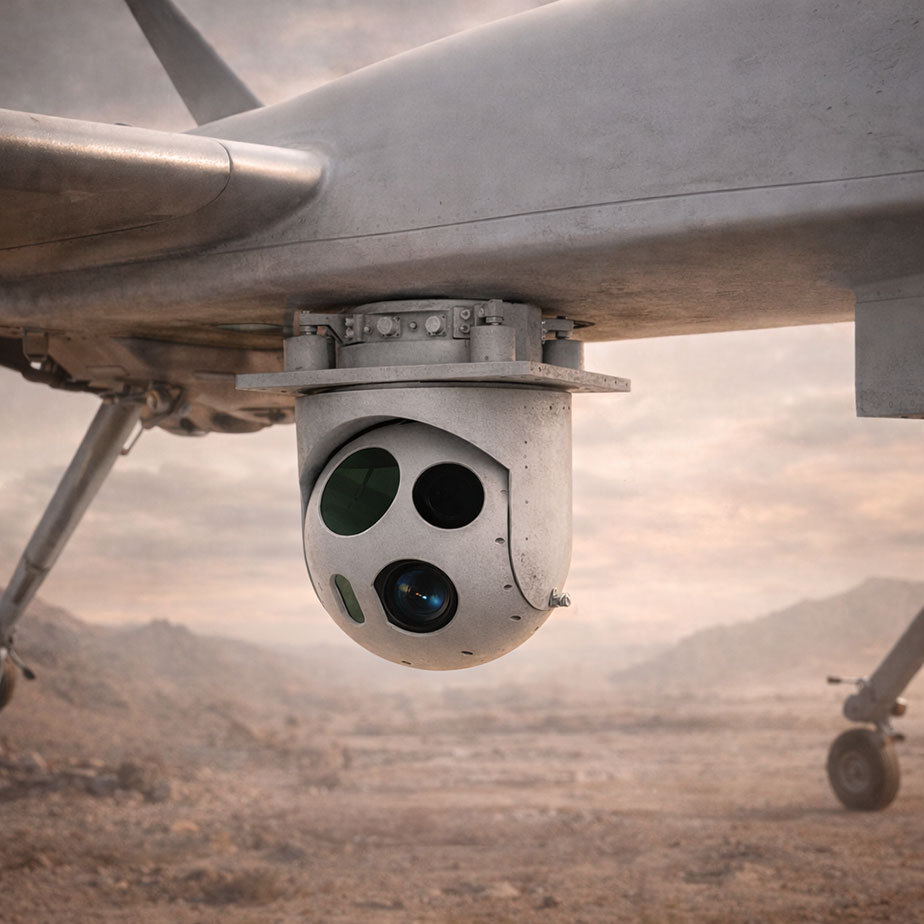

TAQ65S Cooled MWIR ISR Gimbal Payload

No.

Feature Category

Description

1

Extended Situational Awareness

Detect and monitor targets at extended ranges under all weather and lighting conditions using cooled MWIR thermal imaging.

2

Precision Target Acquisition

Integrated laser ranging and geolocation enable accurate target positioning for reconnaissance and fire-control support.

3

Intelligent Tracking Efficiency

AI-powered recognition and automatic tracking reduce operator workload and enhance mission efficiency. AI-Driven Target Recognition & Tracking:

• Simultaneous tracking of ≥32 targets
• Recognition probability ≥85%
• Automatic target lock and re-capture
• Strong anti-interference capability
• Adjustable tracking gate and tracking point

No.

Item

Description

1

Cooled MWIR Thermal Camera

• Cooled Focal Plane Detector
• 640×512 resolution
• NETD ≤20mK
• Long-range detection capability

• Detection: ≥42 km
• Recognition: ≥14 km
• Identification: ≥7 km

• Detection: ≥9.2 km
• Recognition: ≥3 km
• Identification: ≥1.5 km

2

EO Camera

• 2MP resolution
• 17× optical zoom + 8× digital zoom
• Low-light imaging capability

• Detection: ≥19 km
• Recognition: ≥9.5 km
• Identification: ≥4.7 km

• Detection: ≥4.2 km
• Recognition: ≥2 km
• Identification: ≥1 km

3

Laser Rangefinder

• Range ≥10km
• Accuracy ≤±2m

4

Laser Illuminator

• Multi-code support
• Effective range ≥6–8km

5

High-Precision Stabilization System

• Angular jitter ≤0.3 mrad （1σ）
• Pointing accuracy ≤1.5 mrad （1σ）
• 360° continuous yaw rotation
• Pitch range: -120° to +90°
• High-speed response （≥60°/s）

6

Seamless System Integration

• MAVLink protocol compatible
• RS422 / IP control interface
• RTSP / UDP/TS video streaming
• H.264 / H.265 encoding
• Compatible with mainstream autopilot systems
• Supports ground control station (GCS/VCS) integration

7

Size and weight

• 430mm×430mm×598mm
• 65kg
