Product Overview

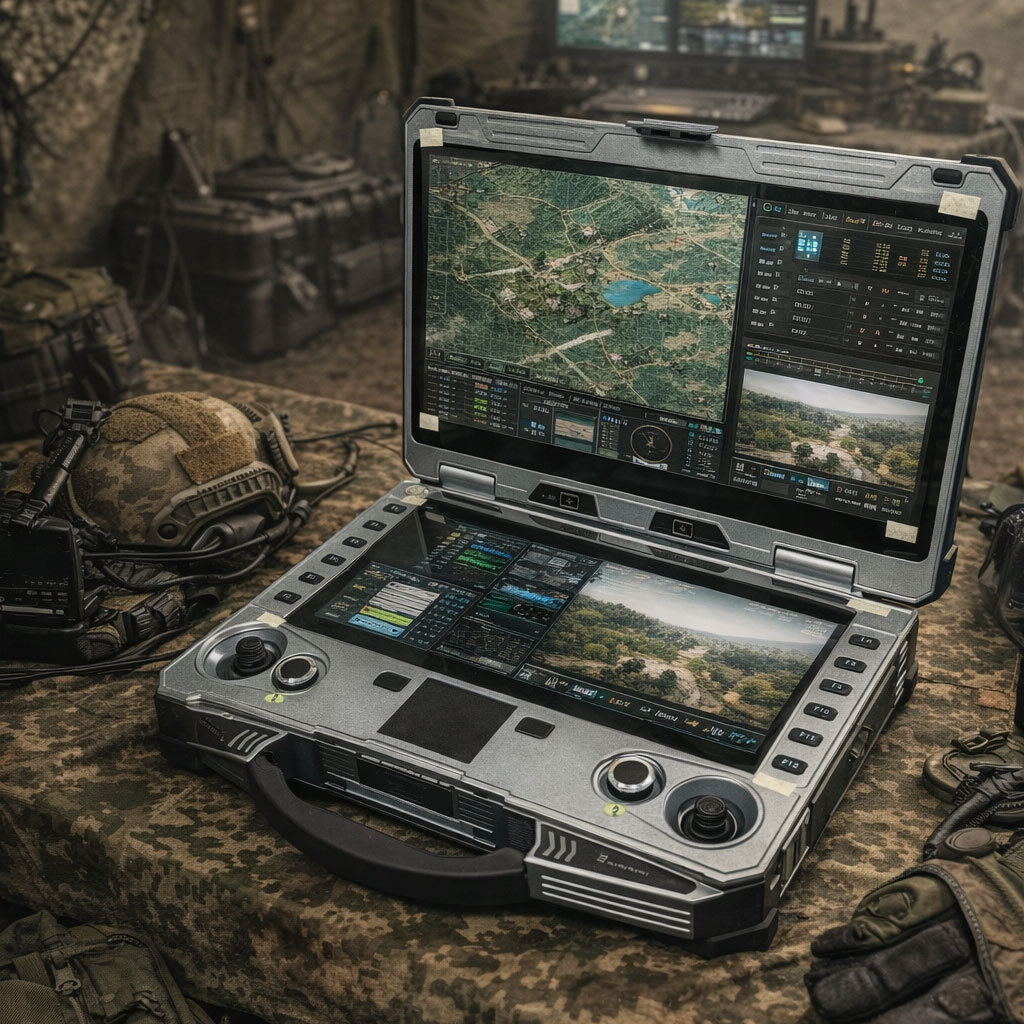

The VCT2000 is a rugged, portable dual-screen control computer designed for mission-critical unmanned system operations, including UAVs, unmanned vehicles, robotics, and counter-UAS platforms.
Built for field deployment, it integrates high-brightness dual displays, precision control interfaces, and high-performance computing into a single compact unit. Operators can simultaneously monitor video feeds, telemetry data, and mission parameters while maintaining precise real-time control.
Key Features
|
No. |
Feature |
Description |
|
1 |
Dual-Screen Operation |
15.6" + 13.3" high-brightness displays enable simultaneous multi-window monitoring and control |
|
2 |
Integrated Control System |
Dual joysticks and dual knobs provide precise, real-time control of unmanned platforms |
|
3 |
High Visibility Display |
Up to 1000 nits brightness ensures clear visibility under outdoor and strong light conditions |
|
4 |
Real-Time Video & Data |
Supports real-time video streaming and bidirectional data transmission (telemetry, sensor data, mission data) |
|
5 |
Customizable Controls |
Up to 12 programmable buttons for user-defined functions and mission-specific operations |
|
6 |

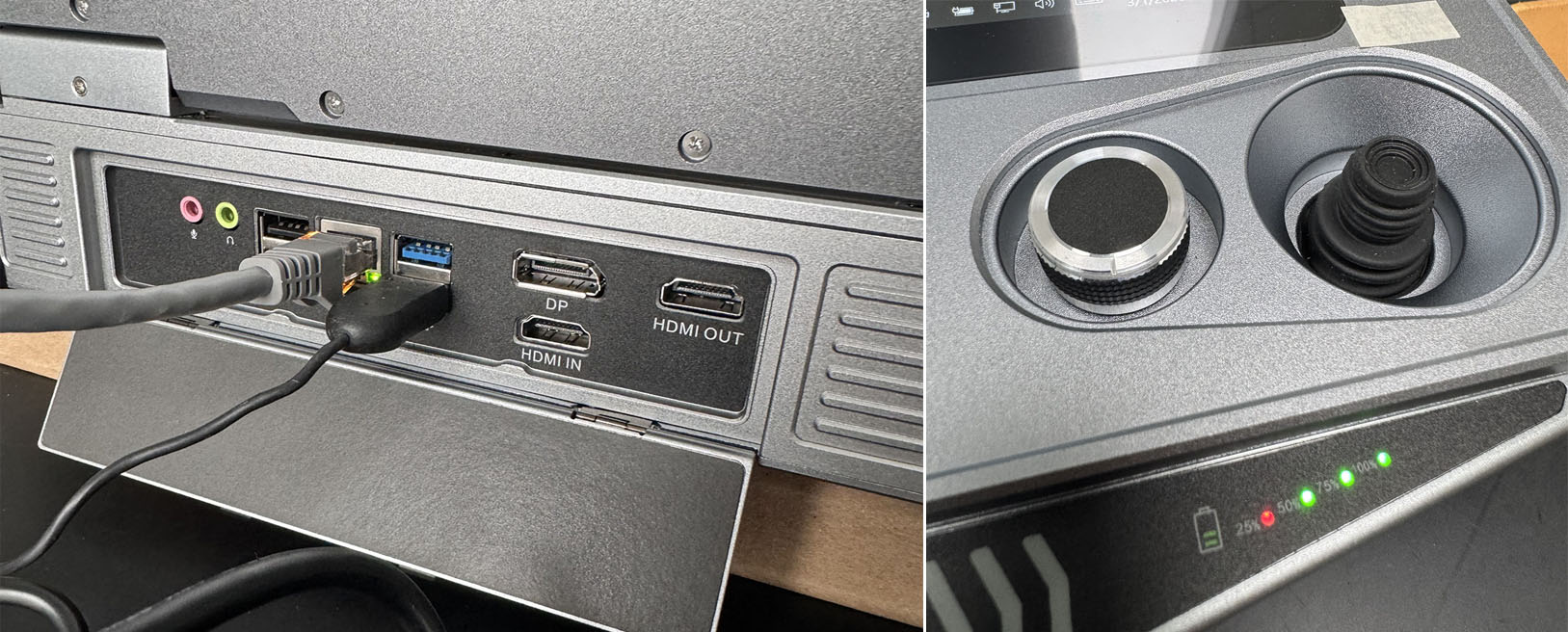

Rich Interfaces |
HDMI, USB, LAN, RS232, SBUS and more for flexible system integration |
|
7 |
Wireless Connectivity |
Integrated WiFi, Bluetooth and optional 5G communication module |
|
8 |

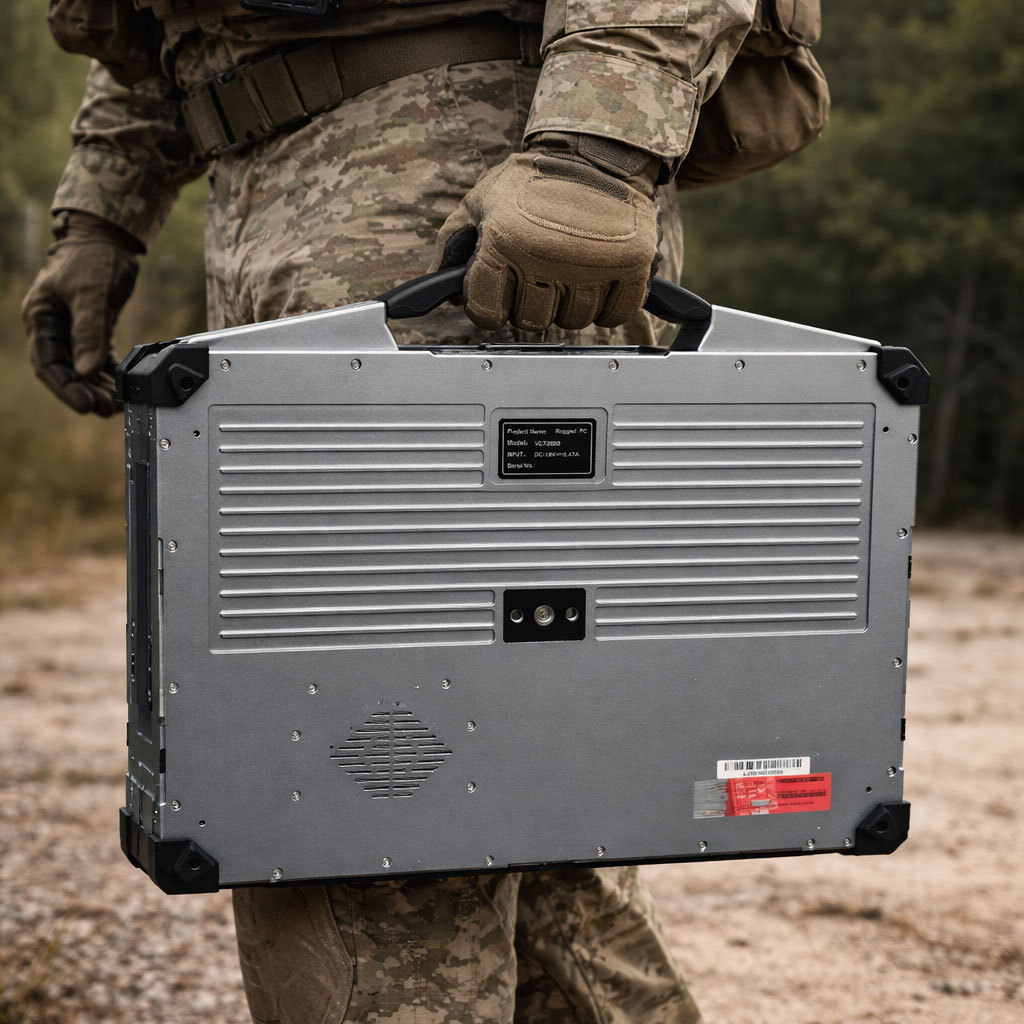

Rugged Design |
Aluminum-magnesium alloy enclosure with IP54 protection for field environments |
|
9 |
Expandable Architecture |
Supports external devices, additional displays, sensors, and communication modules |
|
10 |
Integrated Navigation Support |
Built-in GPS/Beidou for positioning and system synchronization |
Communication Protocols: VCT2000 supports both serial communication protocols and the USB HID report format. This includes the data frame format for data transmission from the microcontroller to the host, as well as the control command format for sending instructions from the host to the microcontroller. The chip model used is the STM32L072VBT6.
Technical Specifications
|
No. |
Category |
Specification |
|
1 |
Display |
15.6" + 13.3" dual screens, 1920×1080, up to 1000 nits |
|
2 |
Touch Panel |
13.3" touch display (optional 15.6" touch) |
|
3 |
Processor |
Intel i5-1235U, 10 cores / 12 threads (Higher-performance CPUs can be customized) |
|
4 |
Memory |
16GB DDR5 (Customizable) |
|
5 |
Storage |
512GB SSD (Customizable) |
|
6 |
Control Inputs |
Dual joysticks, dual knobs, 12 customizable buttons |
|
7 |

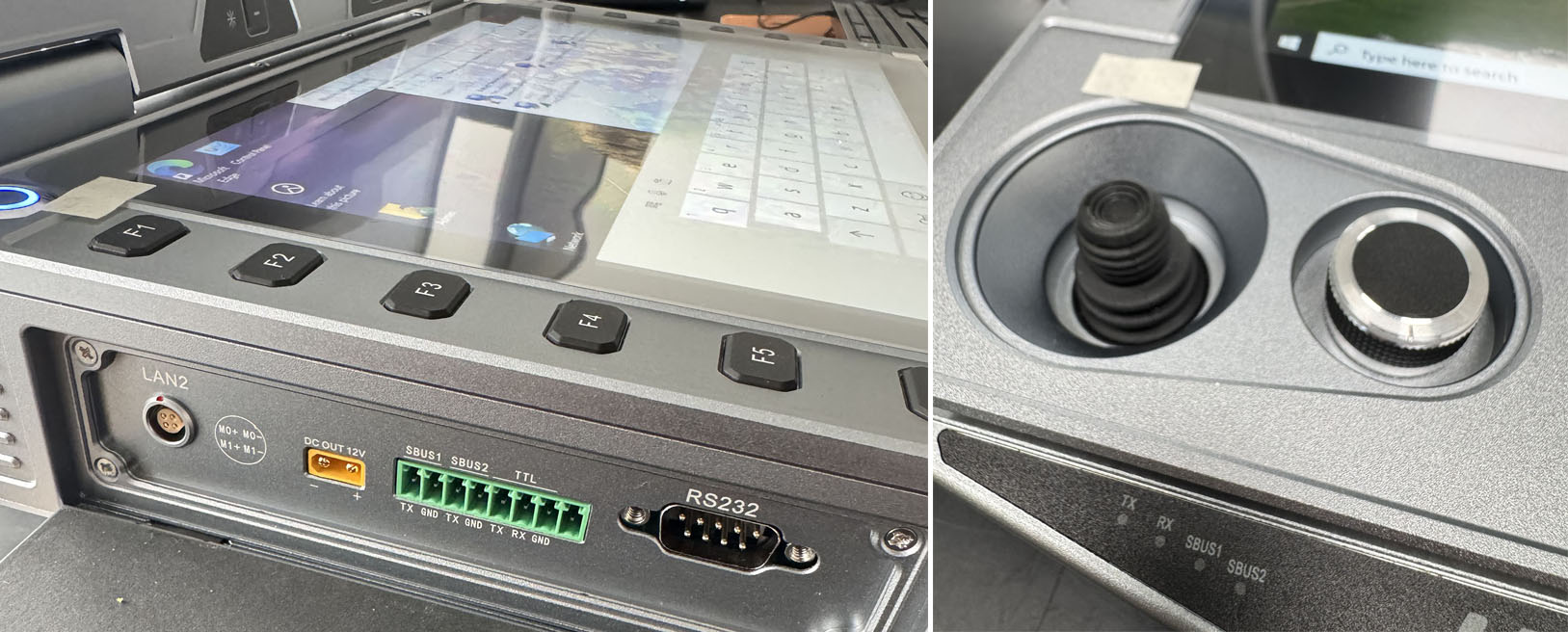

Interfaces |
HDMI IN×2, HDMI OUT×2, USB3.0×3, USB2.0×1, LAN×2 (LAN2 is a ruggedized aviation connector.), RS232×3, SBUS×2, TTL×1, DC 12V Power Output |
|
8 |
Wireless |
WiFi, Bluetooth, 5G public network (Optional) |
|
9 |
Audio |
Integrated speakers |
|
10 |
Positioning |
GPS / Beidou |
|
11 |
Battery |
Typical endurance ~4 hours |
|
12 |
Power Supply |
Standard power adapter |
|
13 |
Material |
Aluminum-magnesium alloy |
|
14 |
Protection Level |
IP54 |
|
15 |
Operating Temperature |
-10°C to +45°C |
|
16 |
Storage Temperature |
-20°C to +55°C |
|
17 |
Humidity |
5%–90% (non-condensing) |
|
18 |
Dimensions |
390 × 280 × 67 mm |
|
19 |
Weight |
Approx. 6.8 kg |
