Product Overview

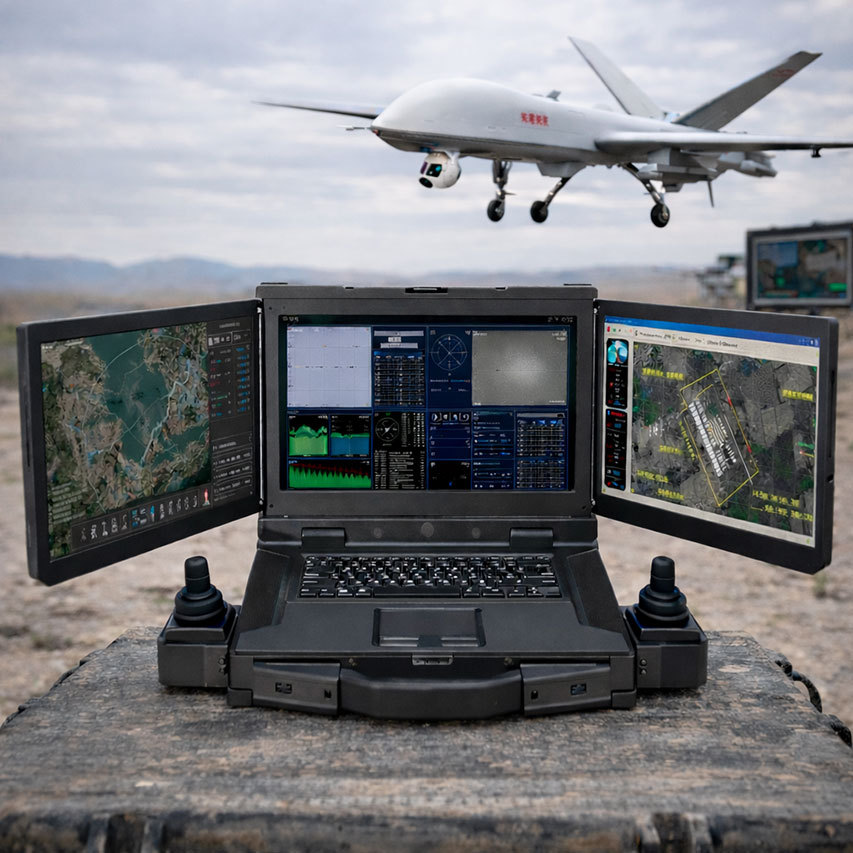

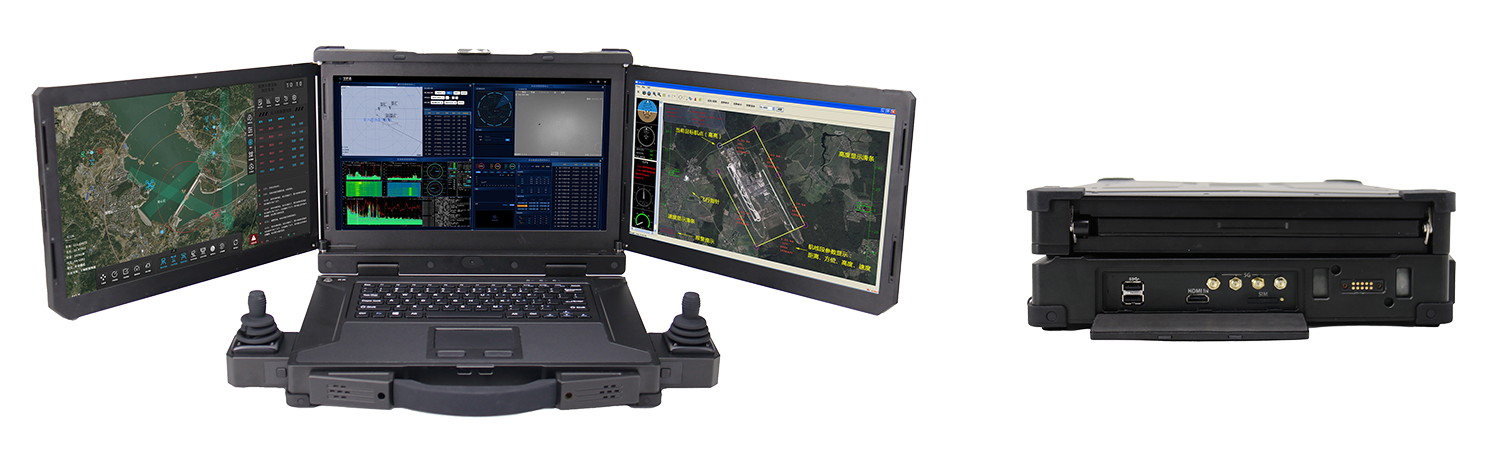

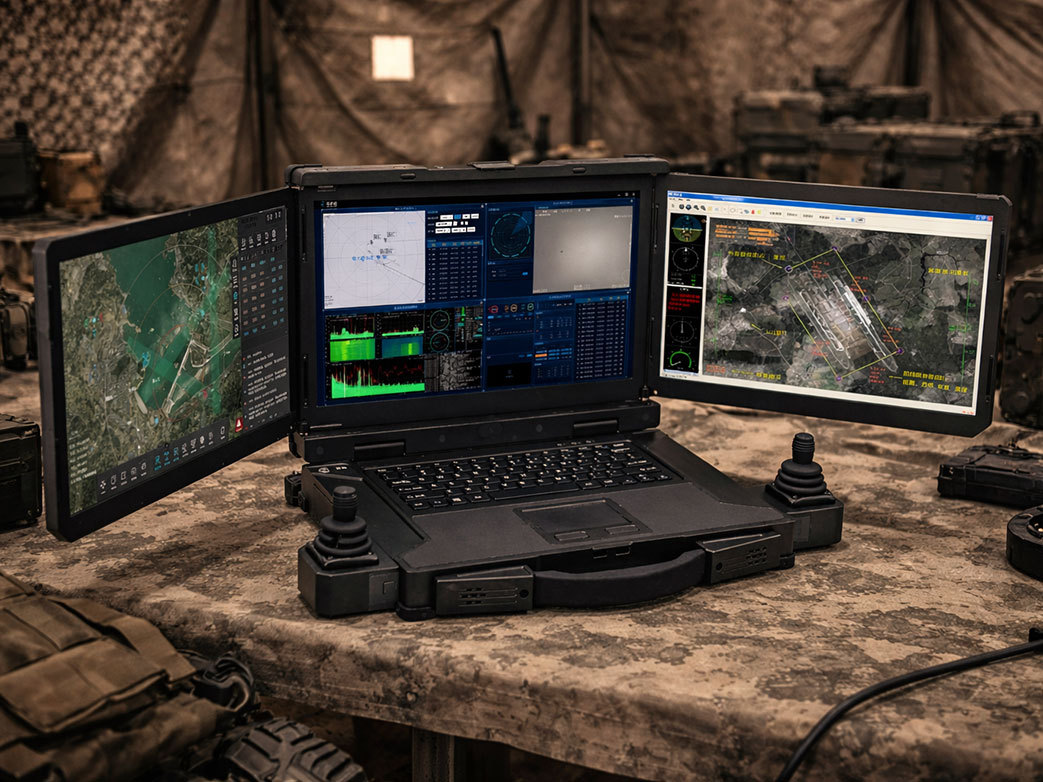

The VCT3000 is a high-performance triple-screen control computer designed for advanced unmanned system operations. It enables operators to simultaneously manage flight control, data link status, and payload video feeds within a single integrated platform.
With three independent high-brightness displays, users can dedicate each screen to a specific mission function—for example: real-time datalink monitoring, UAV flight control interface, and gimbal payload video. This multi-screen architecture significantly improves operational efficiency, situational awareness, and decision-making speed.
Key Features
|
No. |
Feature |
Description |
|
1 |
Triple-Screen Architecture |
Three independent 15.6" FHD displays enable dedicated visualization for control, telemetry, and payload video |
|
2 |
Multi-Task Mission Operation |
Simultaneously run flight control, datalink monitoring, and payload systems without interface switching |
|
3 |
Real-Time Situational Awareness |
Parallel display of video, telemetry, and mission data improves decision-making efficiency |
|
4 |
Detachable Dual Joysticks |
Modular joystick design allows flexible deployment, enabling both integrated operation and external positioning based on mission needs |
|
5 |
Detachable Dual Joysticks |
High-precision control for UAV flight, payload operation, and system interaction |
|
6 |
Integrated Data & Video Links |
Supports real-time video transmission and bidirectional data communication |
|
7 |
SBUS & Control Interfaces |
Native SBUS support for direct integration with UAV control systems |
|
8 |
High-Brightness Displays |
Up to 800 nits brightness for clear visibility in outdoor environments |
|
9 |
Ruggedized Design |
IP65-rated enclosure with full aluminum-magnesium alloy structure for harsh environments |
|
10 |
Expandable Connectivity |
Multiple interfaces for sensors, datalinks, external displays, and mission systems |
|
11 |
Portable Integrated Platform |
All-in-one design combining computing, display, and control in a deployable unit |
Technical Specifications
|
No. |
Category |
Specification |
|
1 |
Display |
3 × 15.6" FHD (1920×1080) high-brightness screens |
|
2 |
Brightness |
Up to 800 nits |
|
3 |
Processor |
Intel Core i5-12400T, 6 cores / 12 threads (Higher-performance CPUs can be customized) |
|
4 |
Memory |
16GB DDR5 (Customizable) |
|
5 |
Storage |
1TB SSD (Customizable) |
|
6 |
Graphics |
Intel UHD Graphics 730 |
|
7 |
Control Inputs |
Detachable dual joysticks |
|
8 |
Interfaces |
USB 3.0 ×4, USB 2.0 ×2, HDMI IN ×1, HDMI OUT ×1 |
|
9 |
Network |
Gigabit Ethernet, WiFi, Bluetooth, 5G network support |
|
10 |
Audio |
Built-in speakers & microphone |
|
11 |
Battery |
14.8V / 10000mAh, ~3 hours operation |
|
12 |
Power |
180W adapter (AC 100–240V / DC 19V) |
|
13 |
Protection Level |
IP65 |
|
14 |
Material |
Aluminum-magnesium alloy (CNC integrated) |
|
15 |
Dimensions |
390 × 280 × 87 mm |
|
16 |
Weight |
Approx. 10 kg |
|
17 |
Operating Temperature |
-20°C to +55°C |
|
18 |
Storage Temperature |
-40°C to +70°C |
